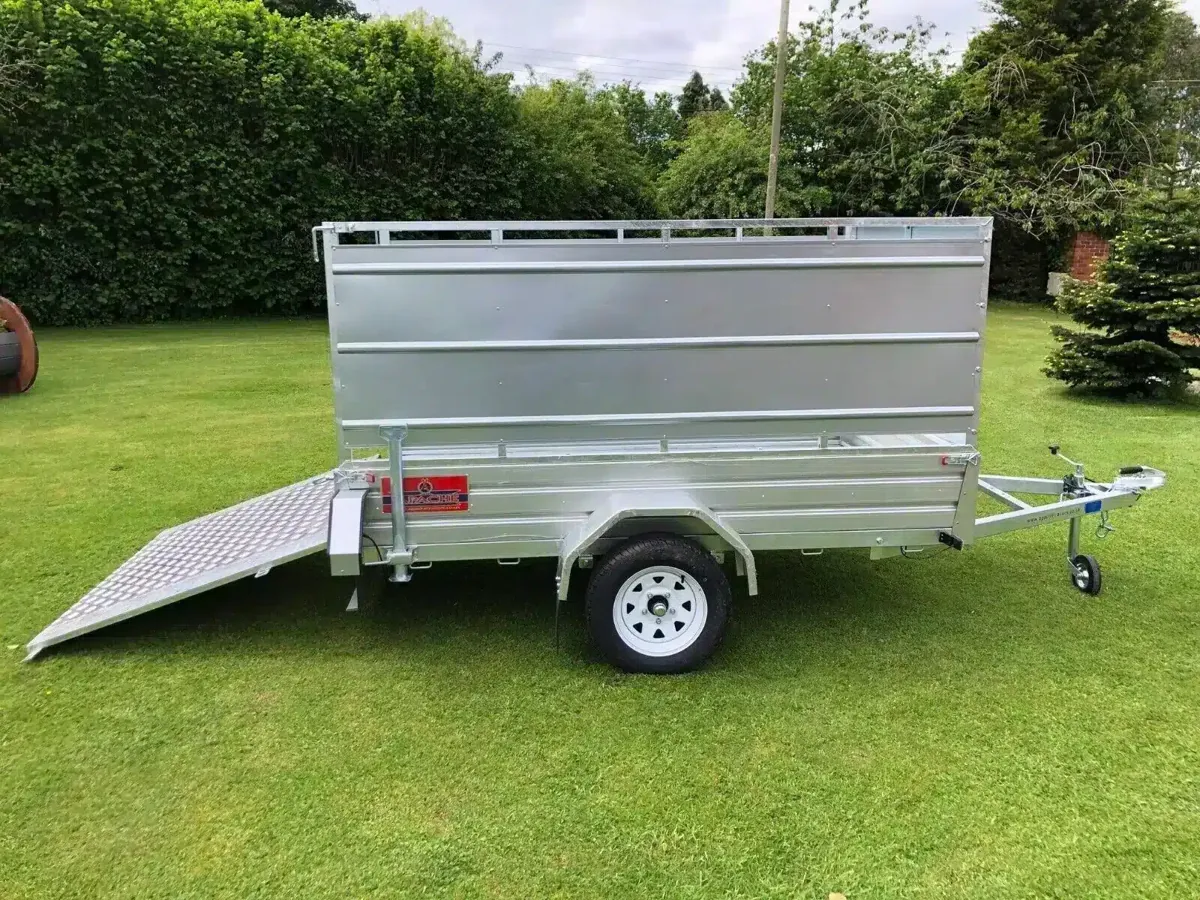

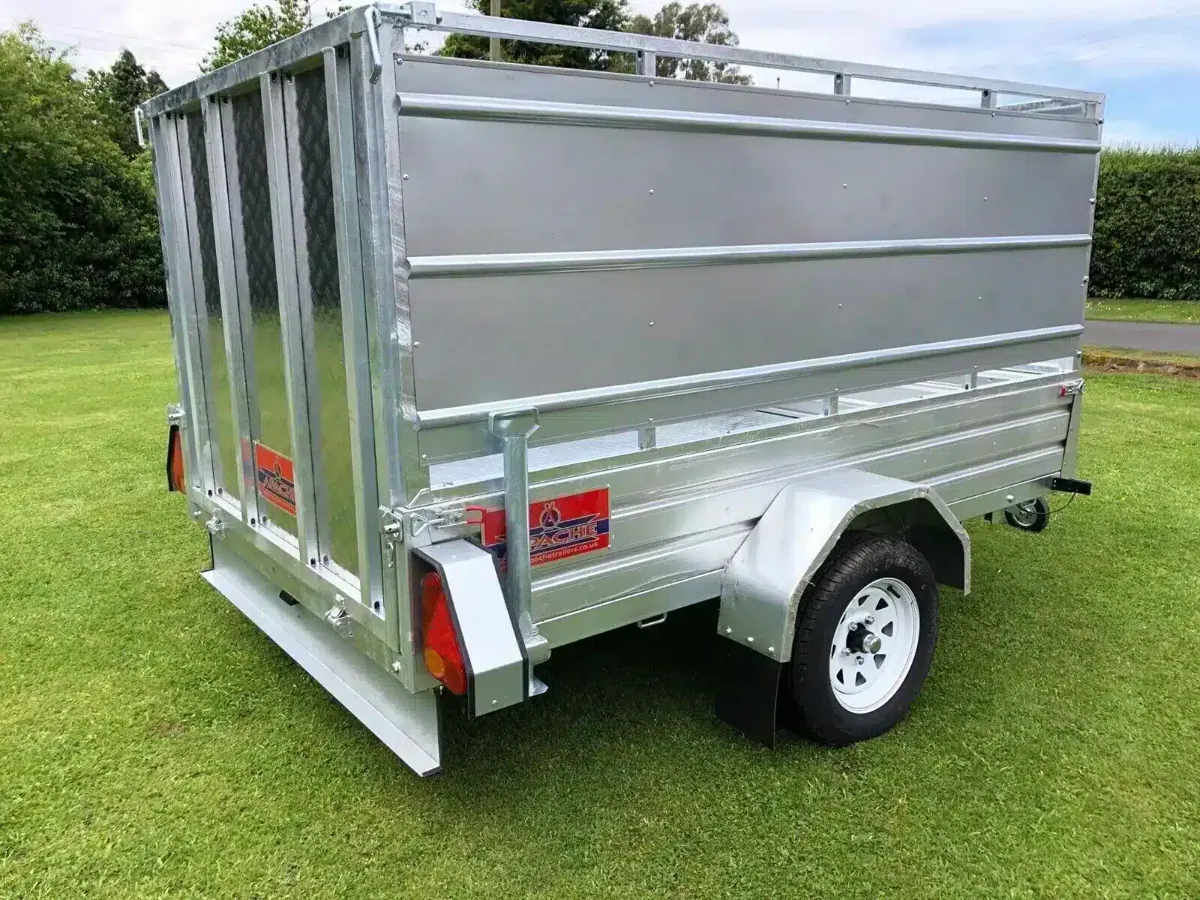

8ft x 5ft Ultra Max Utility Trailer with Rear Loading Ramp & High Sides

The Apache 99B Ultra Max Utility Trailer is a robust 8ft x 5ft high-sided trailer featuring extra tall aluminium composite sides and a rear loading ramp—ideal for transporting bulkier or taller loads securely. Designed and built in the UK with EU type approval, it’s constructed for heavy use with premium galvanised steel and a solid steel floor.

Key Specifications & Dimensions:

• Bed Size: 8ft x 5ft (2480mm x 1580mm)
• Overall Size (L x W x H): 8ft x 5ft x 4ft 3in (2480mm x 1580mm x 1300mm)
• Gross Vehicle Weight (GVW): 750 kg (unbraked)
• Unladen Weight: 330 kg
• Payload Capacity: Up to 420 kg
• Axle: Single

Build & Construction:

• Side Height: 4ft 3in / 1300mm extra-high aluminium composite sides
• Chassis: Heavy-duty galvanised steel
• Suspension: Heavy-duty leaf spring
• Hitch Type: Bradley cast tow hitch

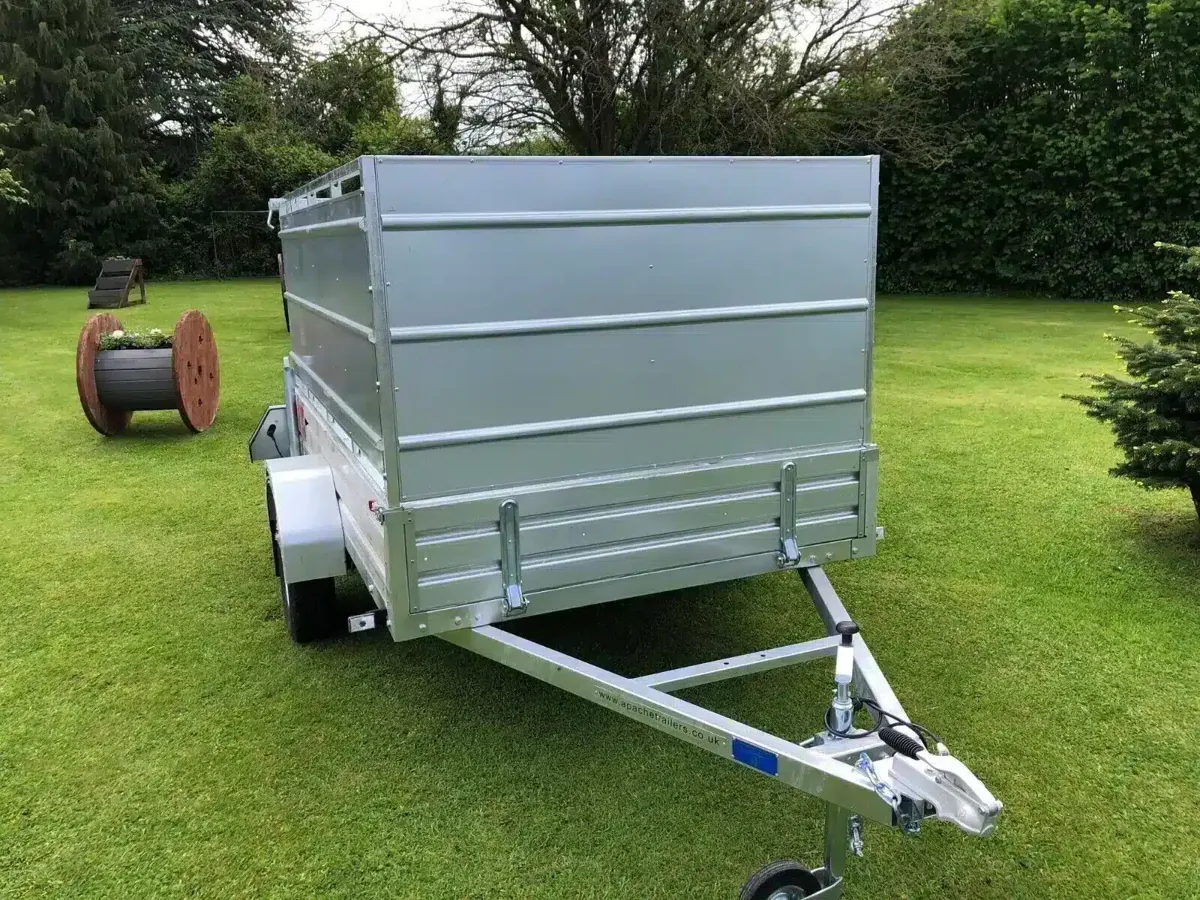

• Front Opening: Drop lower front

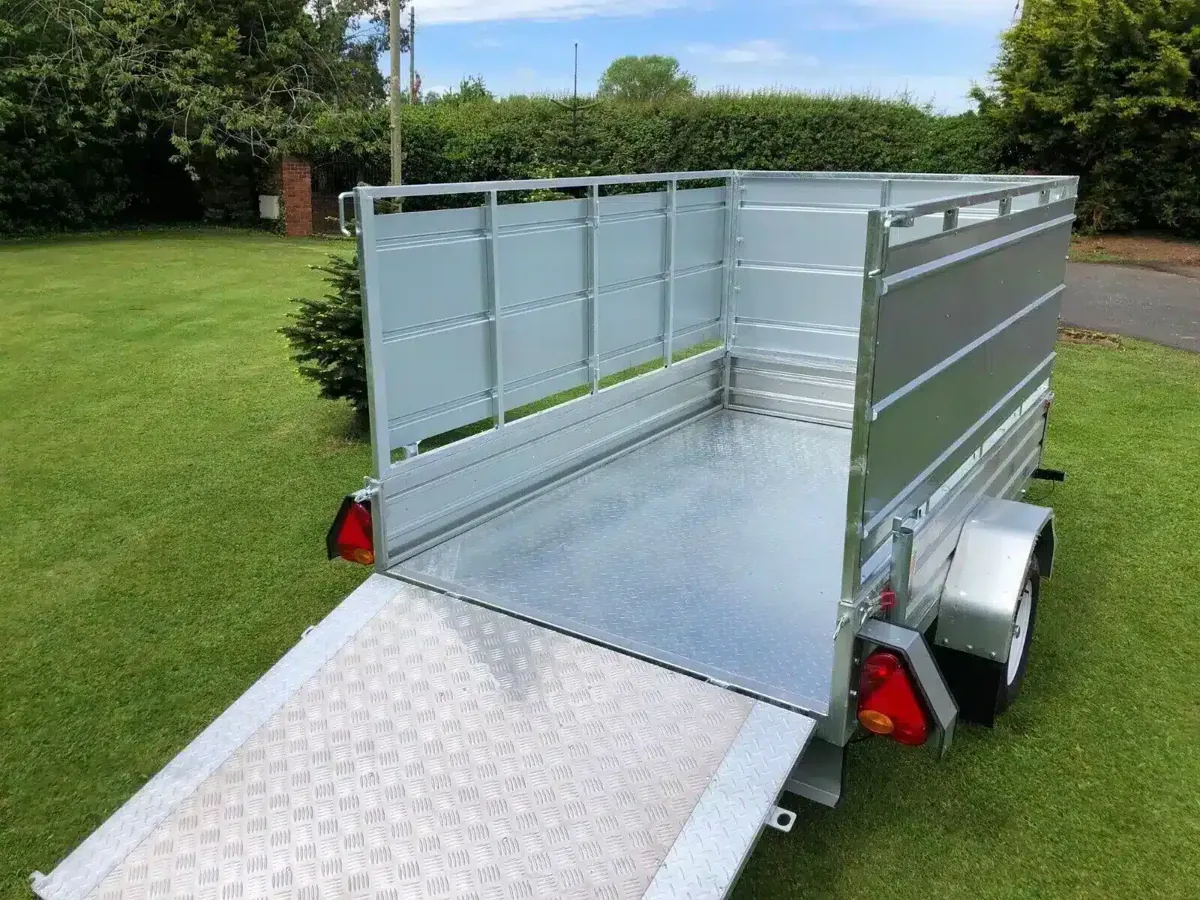

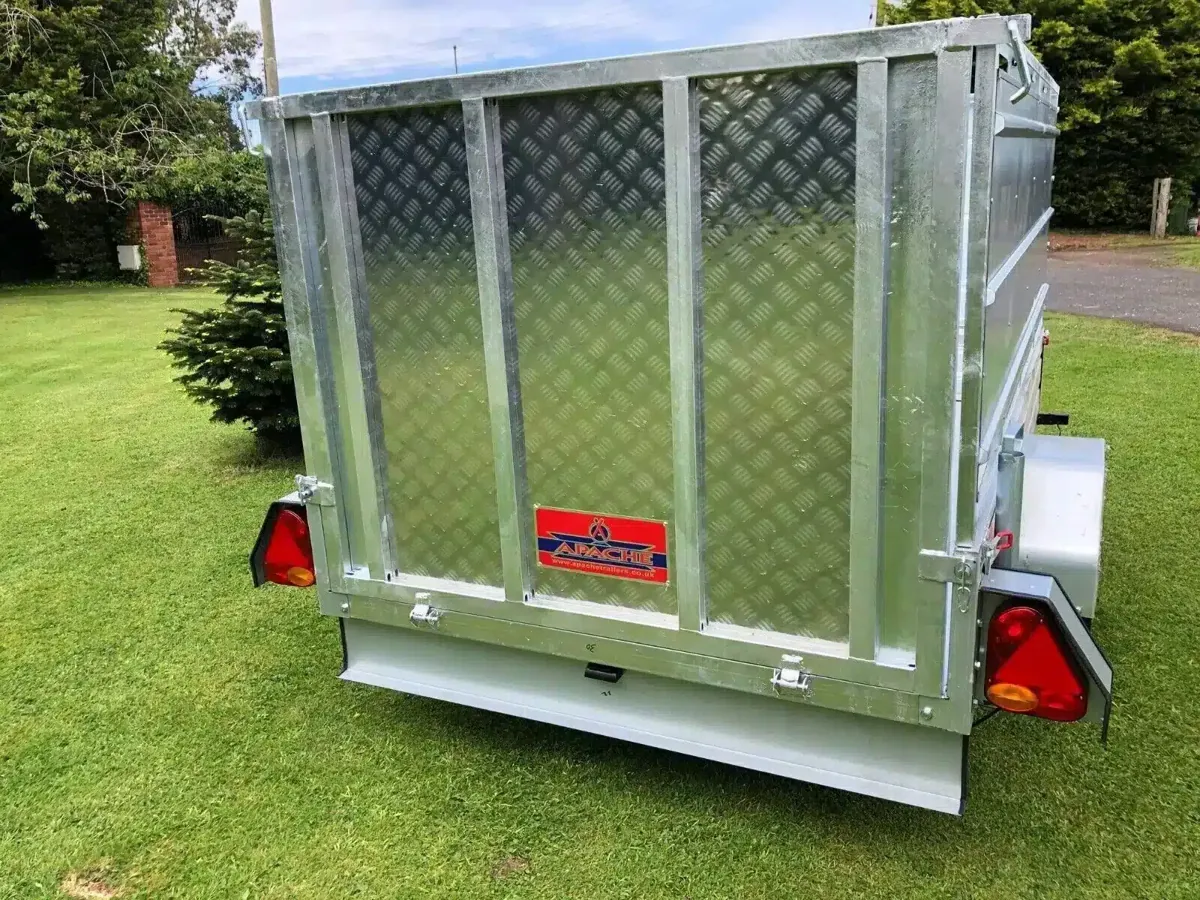

• Rear Opening: Full-width drop loading ramp
• Floor Material: Hot dipped heavy gauge galvanised solid steel
• Side Material: Solid aluminium composite panels
• Colour: Grey/silver galvanised finish
• Wheels: 2 x 13in steel wheels

Lighting & Electricals:

• Lights: Certified lighting kit supplied & fitted as standard
• Electricals: 7-pin heavy duty socket

Included as Standard:

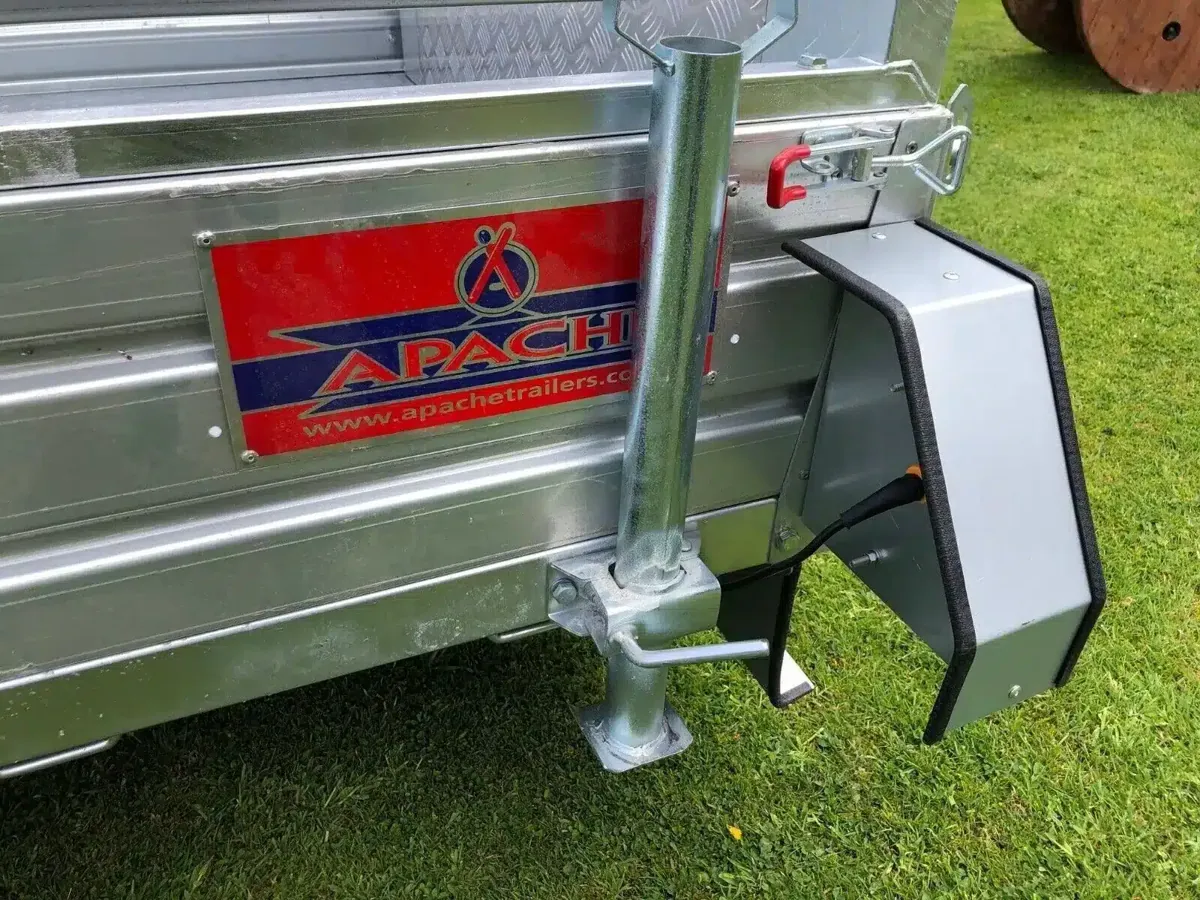

• Jockey Wheel: Included as standard
• Prop Stands: Included as standard

Optional Extras:

• Spare wheel
• Heavy duty fitted tarpaulin cover
• Tarpaulin support bar
• Tie downs
• Hitch lock
• Wheel clamp
• Locking wheel nuts
• Padlock box
• Number plate
• Fitted alloy metal toolbox
• 13-pin adapter available
