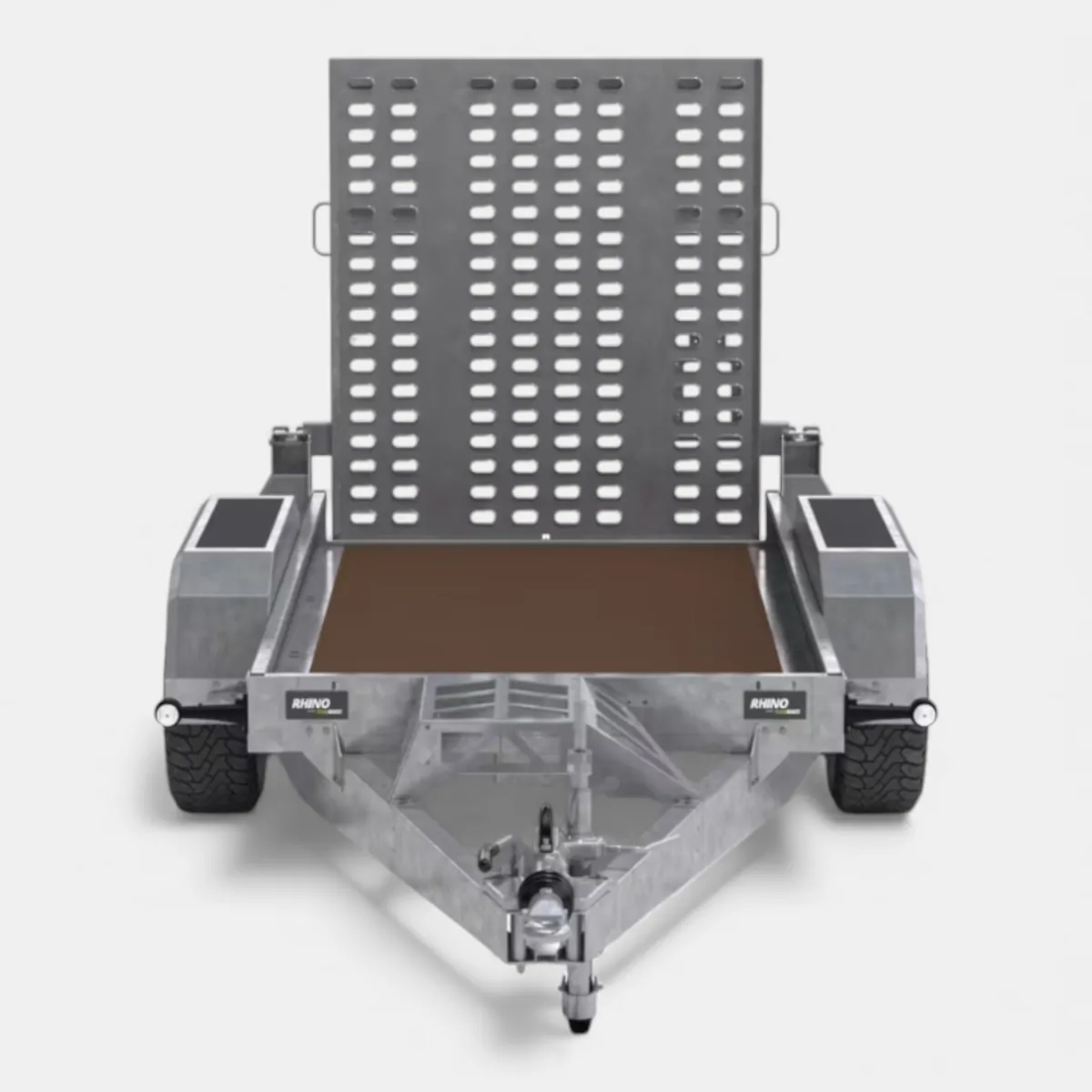

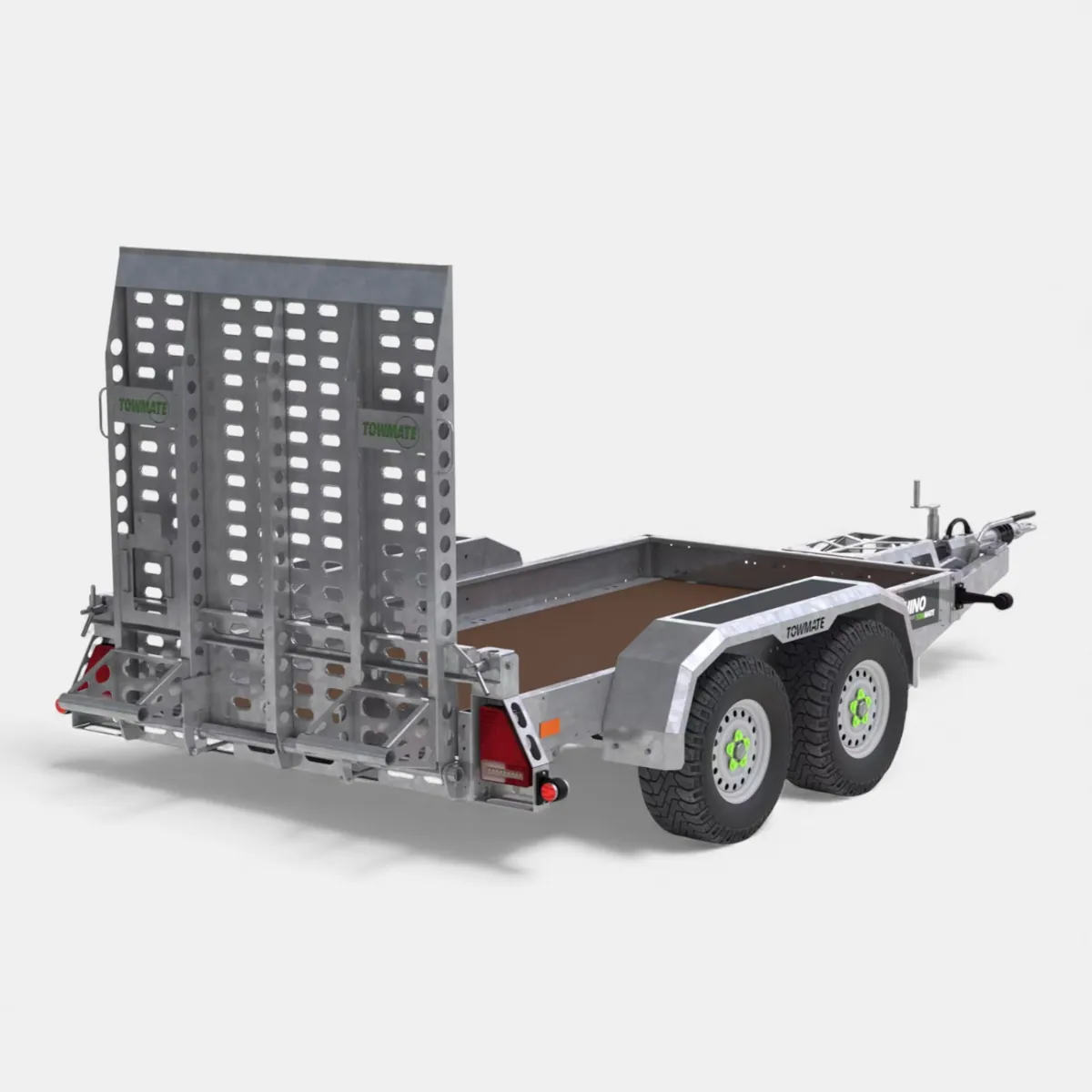

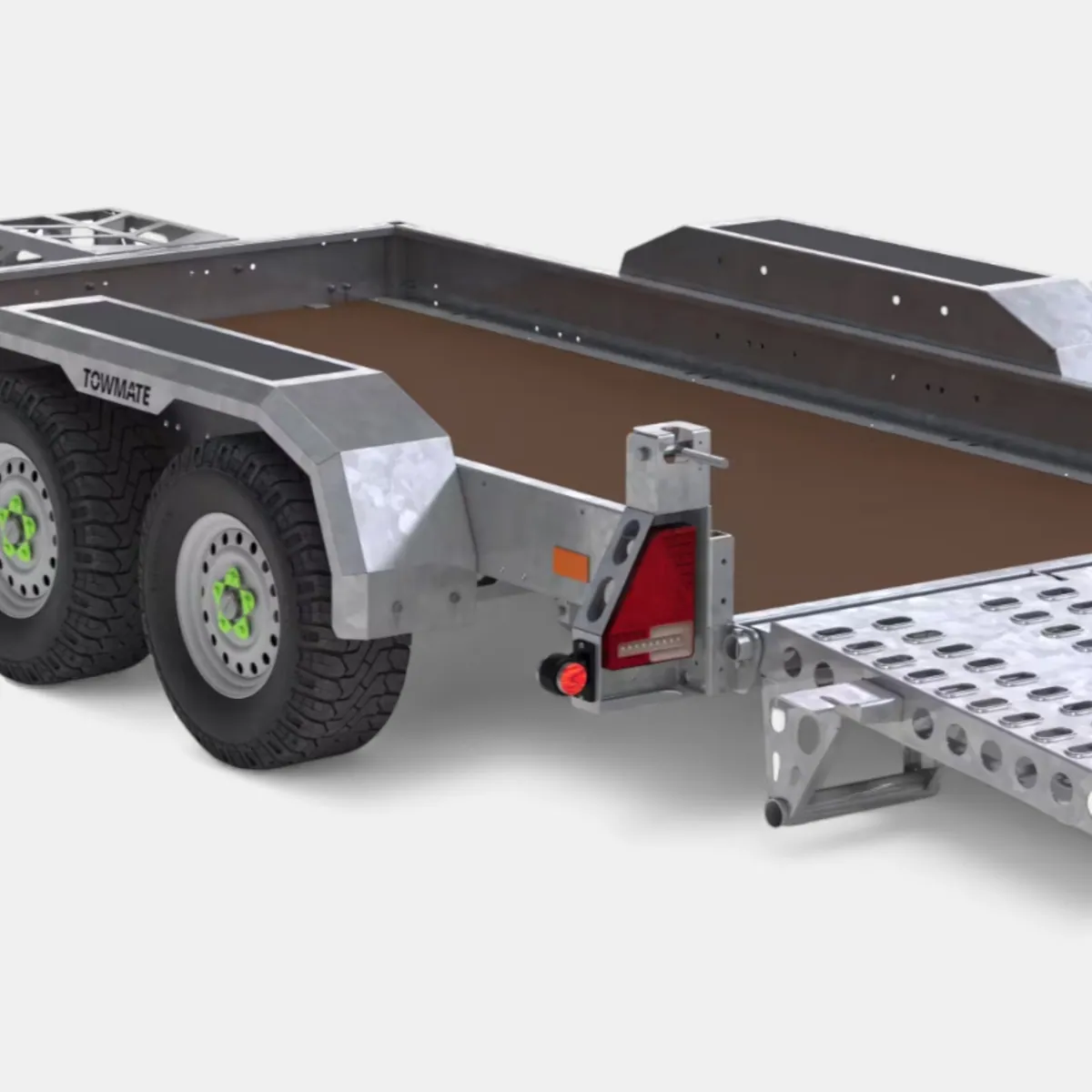

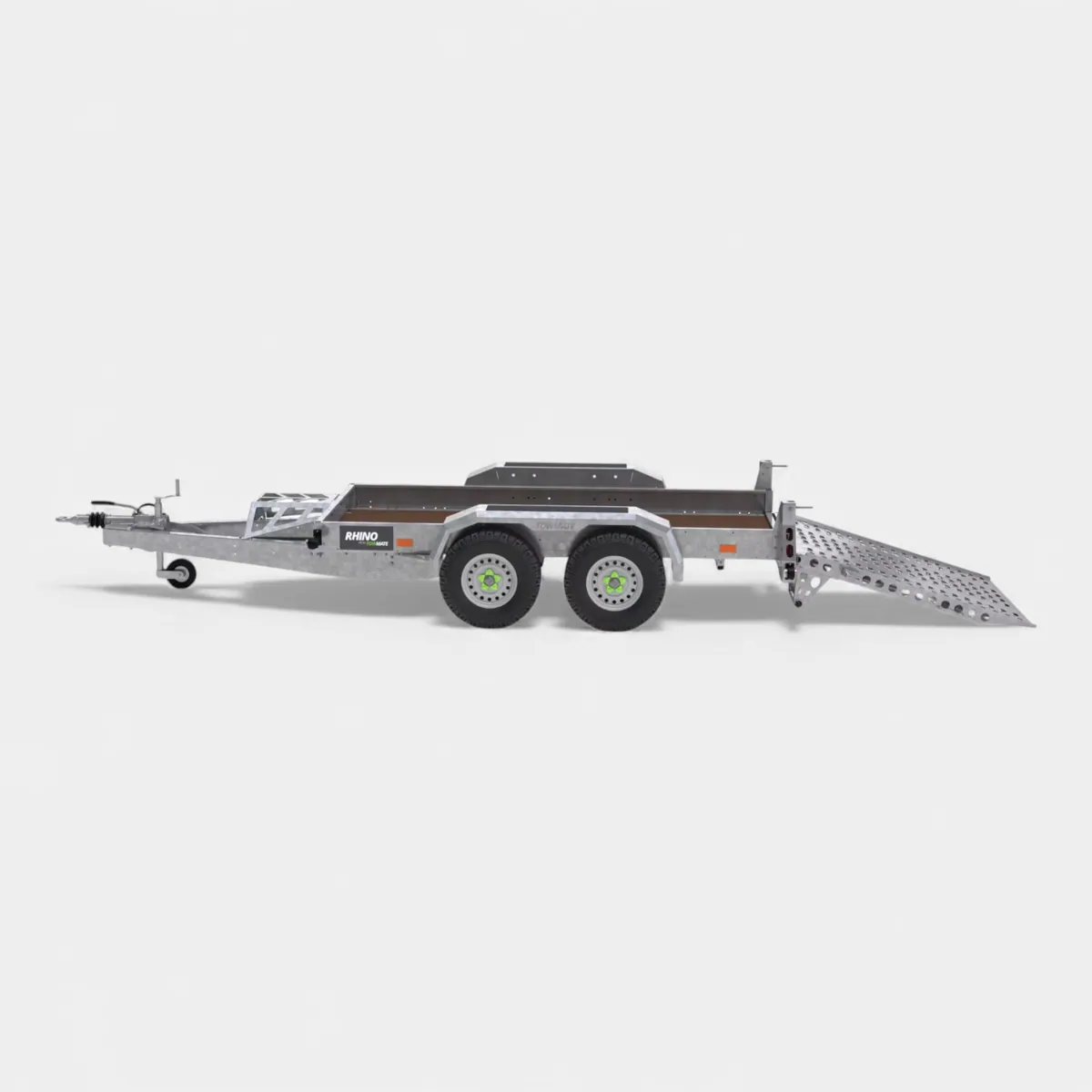

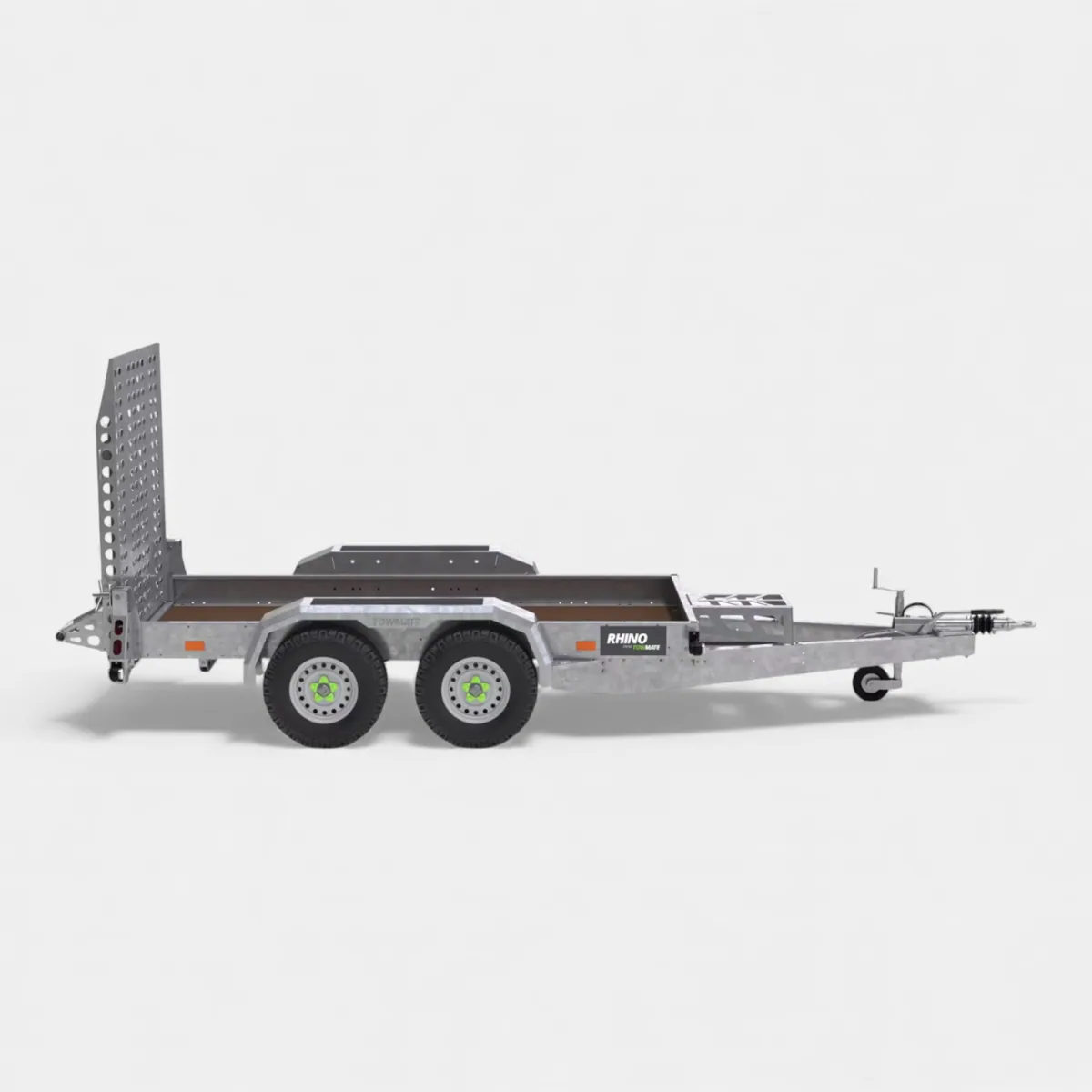

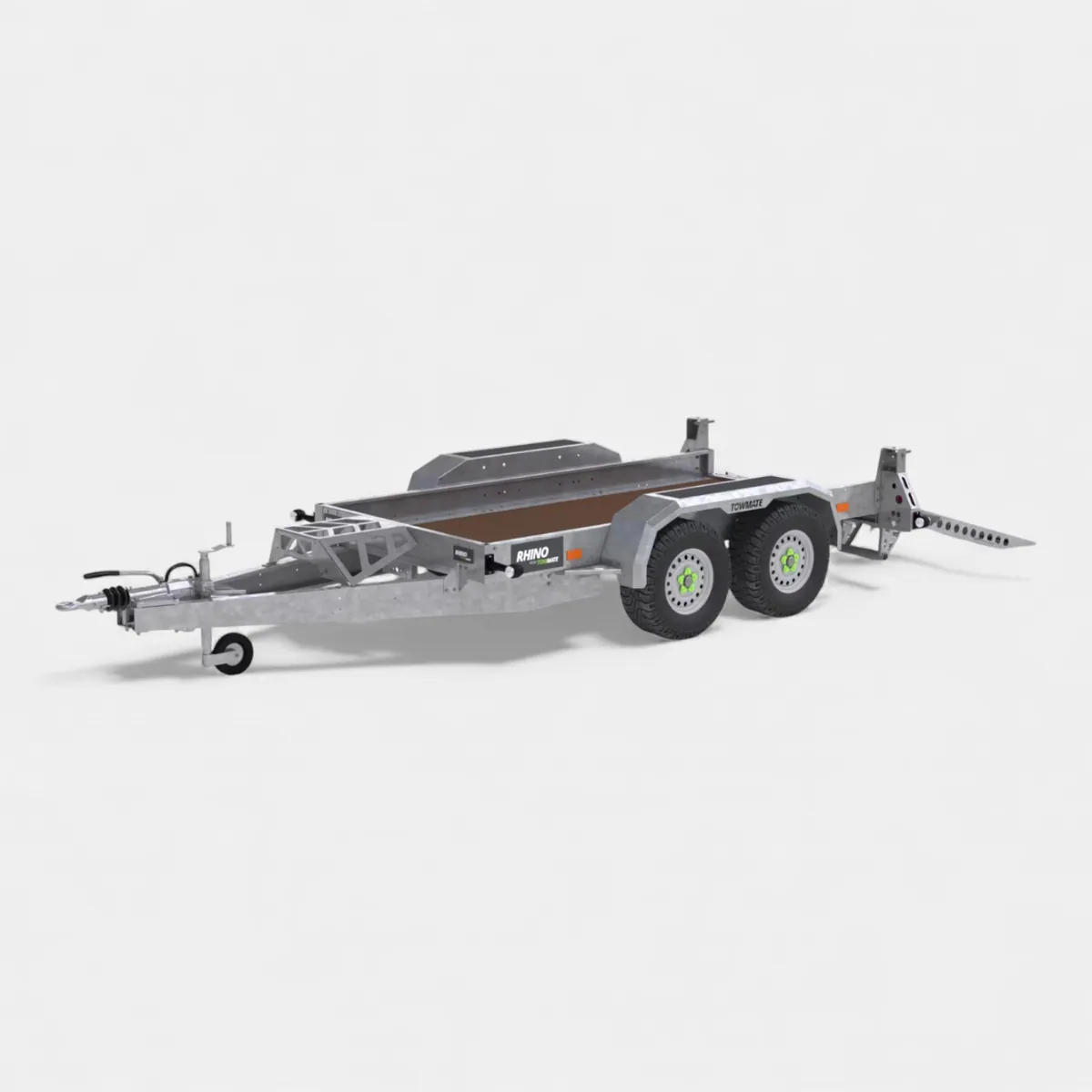

10ft x 5ft Braked Twin Axle Heavy Duty Road Apache Plant Trailer with Rear Loading and Front Bucket Rest

The Apache Plant 105 offers maximum payload and superior strength, making it the ideal trailer for transporting heavier equipment and machinery. Built in the UK with full type approval, it features a twin axle, heavy-duty suspension, and an easy-to-use gas-assist ramp.

Key Specifications & Dimensions:

• Internal bed size: Approx. 10ft x 5ft 7in (3045mm x 1700mm)
• External size: Approx. 17ft 1in x 7ft 7in (5205mm x 2300mm)
• Bed height: 1ft 3in (380mm)
• Gross Vehicle Weight (GVW): 3500 kg (braked)
• Unladen weight: 724 kg
• Payload capacity: Up to 2776 kg
• Axle: Twin axle (2)

Build & Construction:

• Chassis: Tough, hot-dipped galvanised steel
• Suspension: Heavy-duty axle and running gear
• Front: Extended drawbar with universal bucket rest

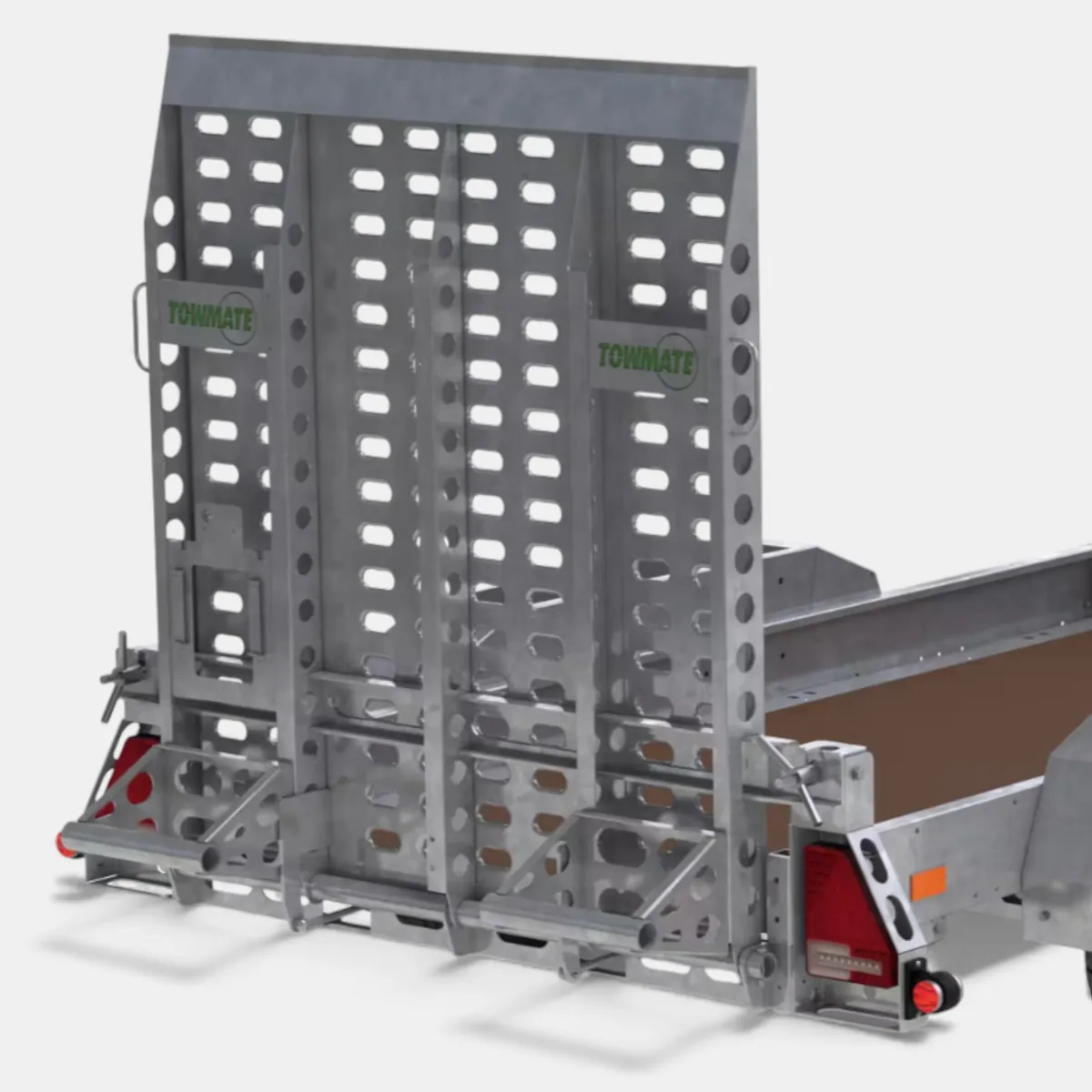

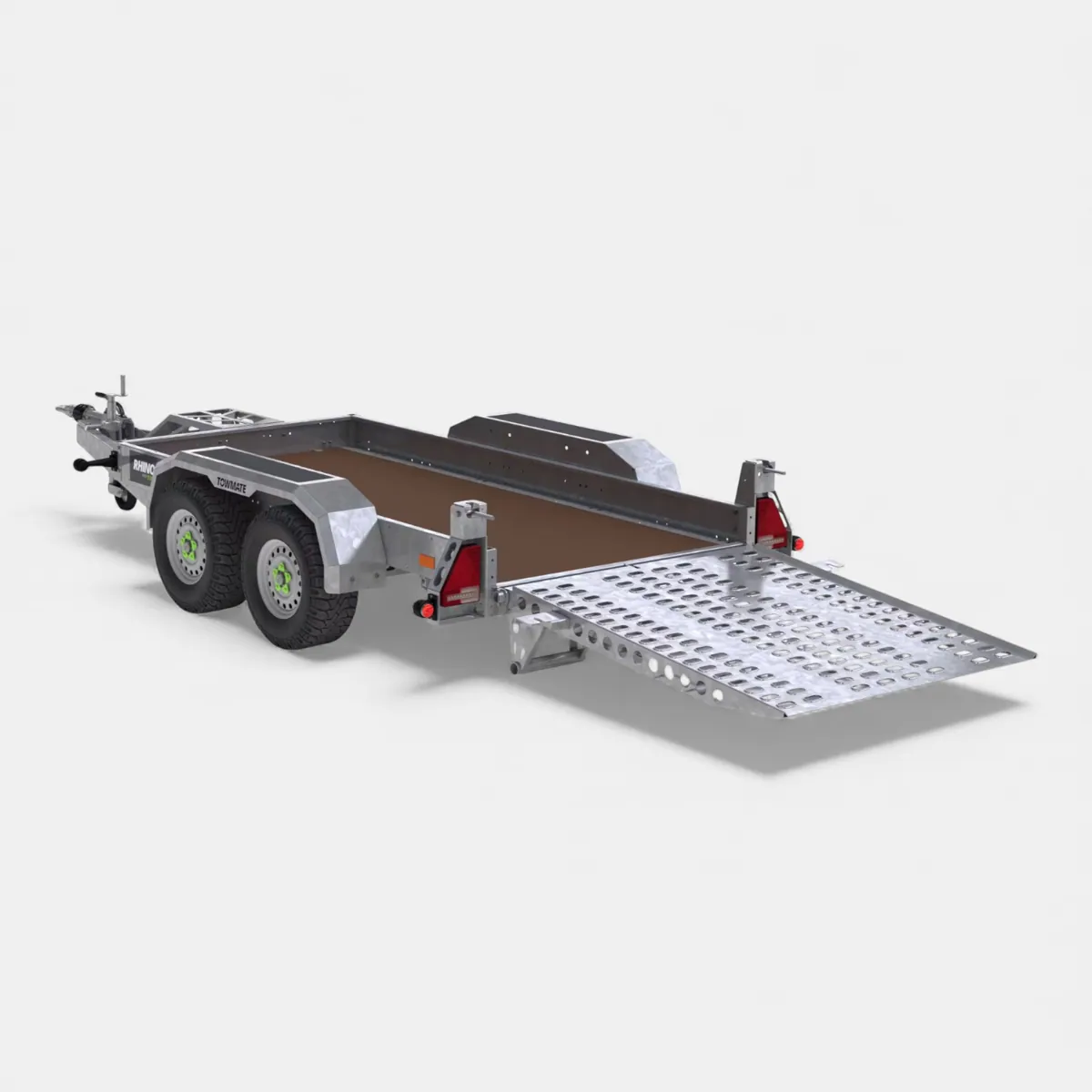

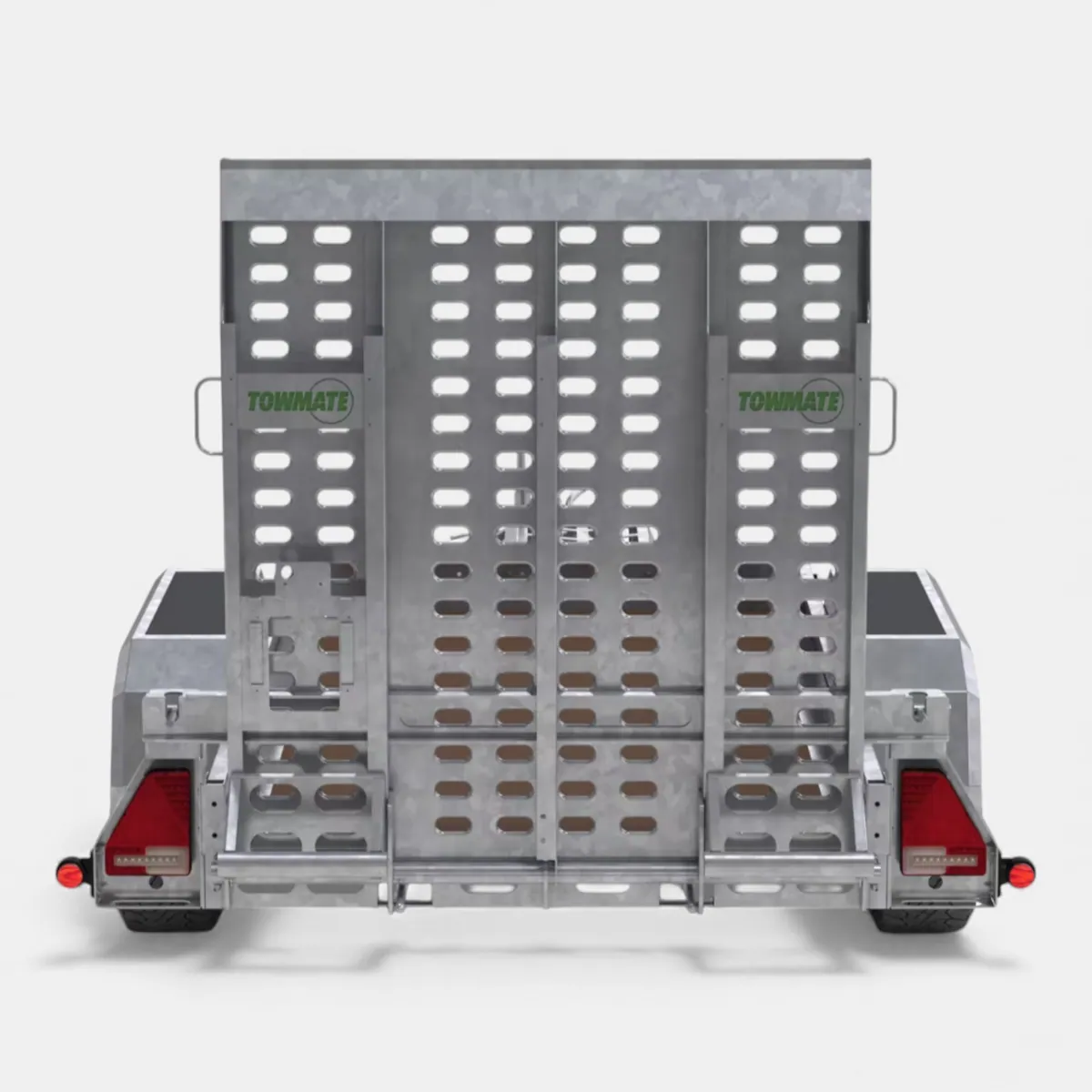

• Rear: 1400mm full-width ramp with gas-assist
• Flooring: Phenolic board
• Sides: Low-sided deck (145mm side height)
• Finish: Galvanised steel (silver)
• Wheels: 4 x 185/70 R13 wheel & tyre assembly
• Hitch (standard): Cast steel 50mm ball coupling
• Hitch (optional): 40mm eye coupling – £79.99
• Tie-downs: 4 pairs (8 points) of 2.5T recessed lashing rings

Lighting & Electricals:

• Lights: EU-approved lighting system
• Electricals: 13-pin socket

Included as Standard:

• Jockey wheel: Included as standard
