10ft x 5ft Braked Twin Axle Heavy Duty Road Apache Plant Trailer with Rear Loading and Front Bucket Rest
SKU# PLANT-105
In Stock
£5,699.95
Shop Utility & General Purpose Trailers
7ft x 4ft Utility Trailer with Rear Loading Ramp & Double Cage
Apache · Ref: 83B-doublecage-ramp
- UK mainland delivery arranged — or collect from our yard
- Checked over and prepared before handover
- Viewings by appointment · finance available on request
£2,165.15
In stock — available to order
Secure checkout
Book a Viewing or Ask a QuestionKey Specifications
- Rear Access
- Ramp
- Cage Sides
- With cage sides
- Bed Size (ft)
- 7ft x 4ft
- Braked
- Unbraked
- With Toolbox
- Without toolbox
- Colour
- Silver
- Roller Shutter
- Without roller shutter
- Trailer Type
- Utility Trailer
- Type Approved
- Type approved
- Box Sides
- Without box sides
- Condition
- New
- Category
- Utility & General Purpose Trailers
- SKU
- 83B-doublecage-ramp
- Also listed in
- Cage & Ramp Trailers
You May Also Like
More like this → 9ft x 4ft Braked Twin Axle Heavy Duty Road Apache Plant Trailer with Rear Loading and Front Bucket Rest
SKU# PLANT-94
In Stock
£4,499.95
6ft 5in x 4ft 5in Flatbed General Purpose Trailer with Phenolic Boarding (Flat Pack Kit)
SKU# FBK-BOARD-FLATPACK
In Stock
£1,025.00
Specifications & Details

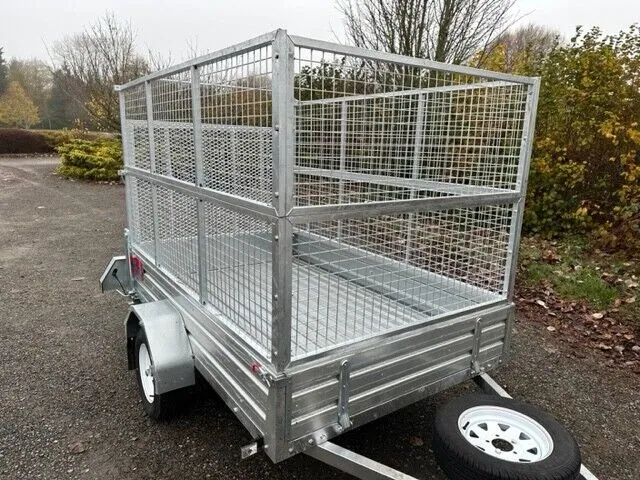

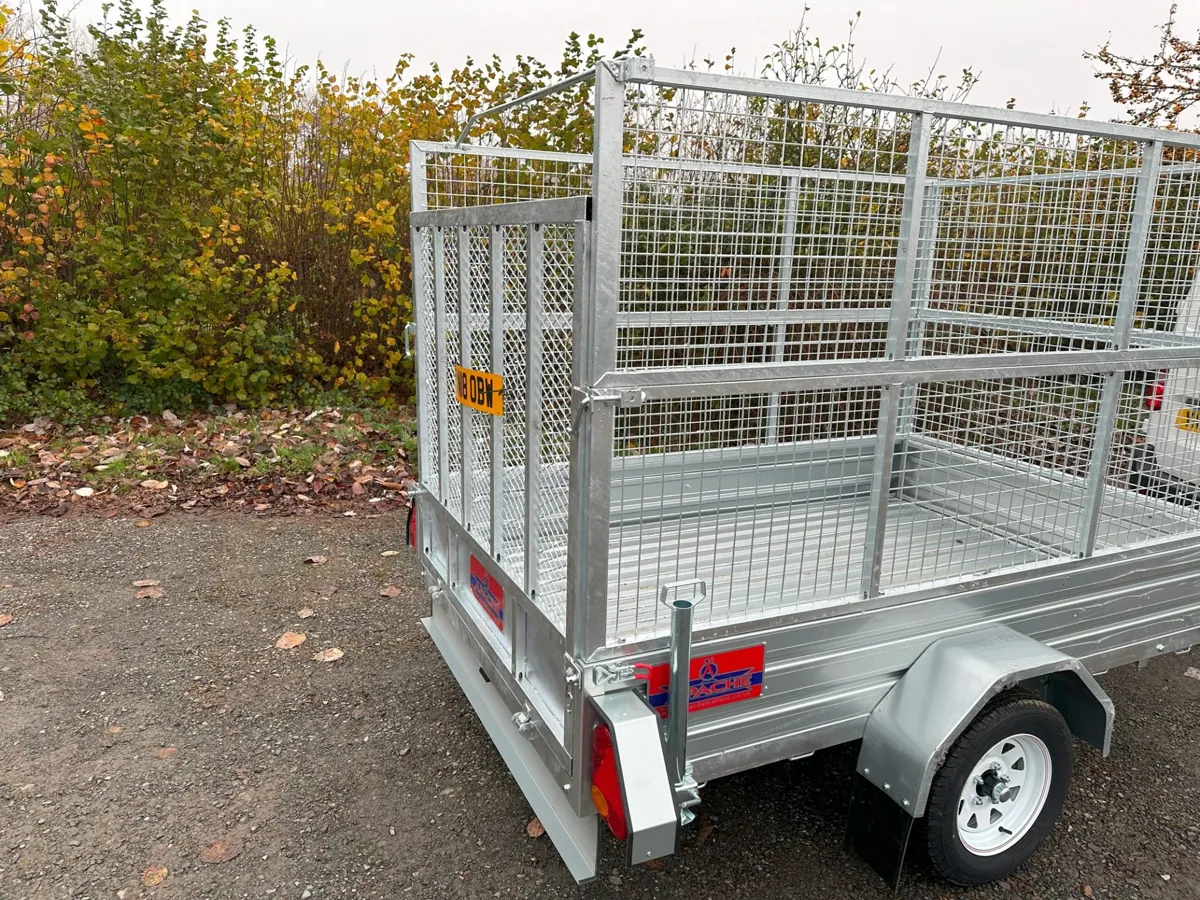

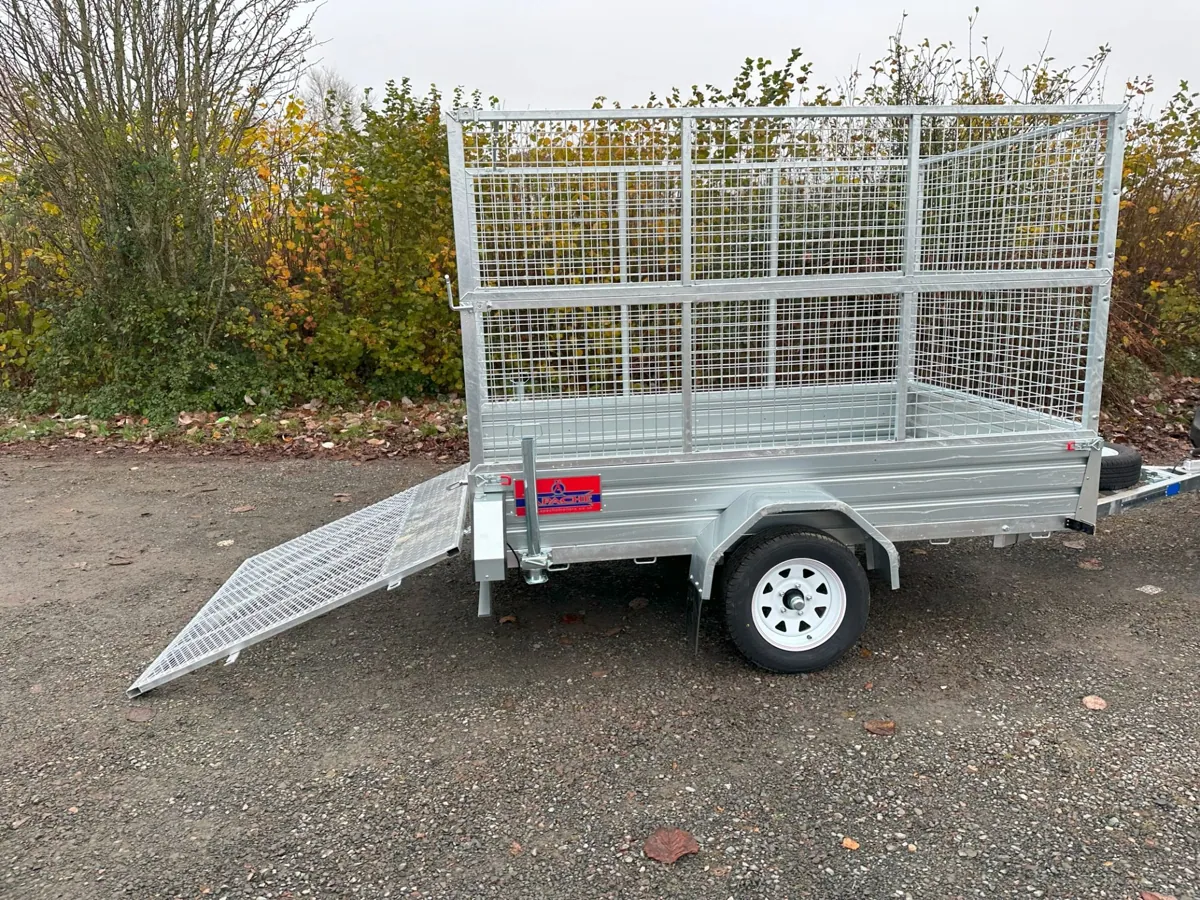

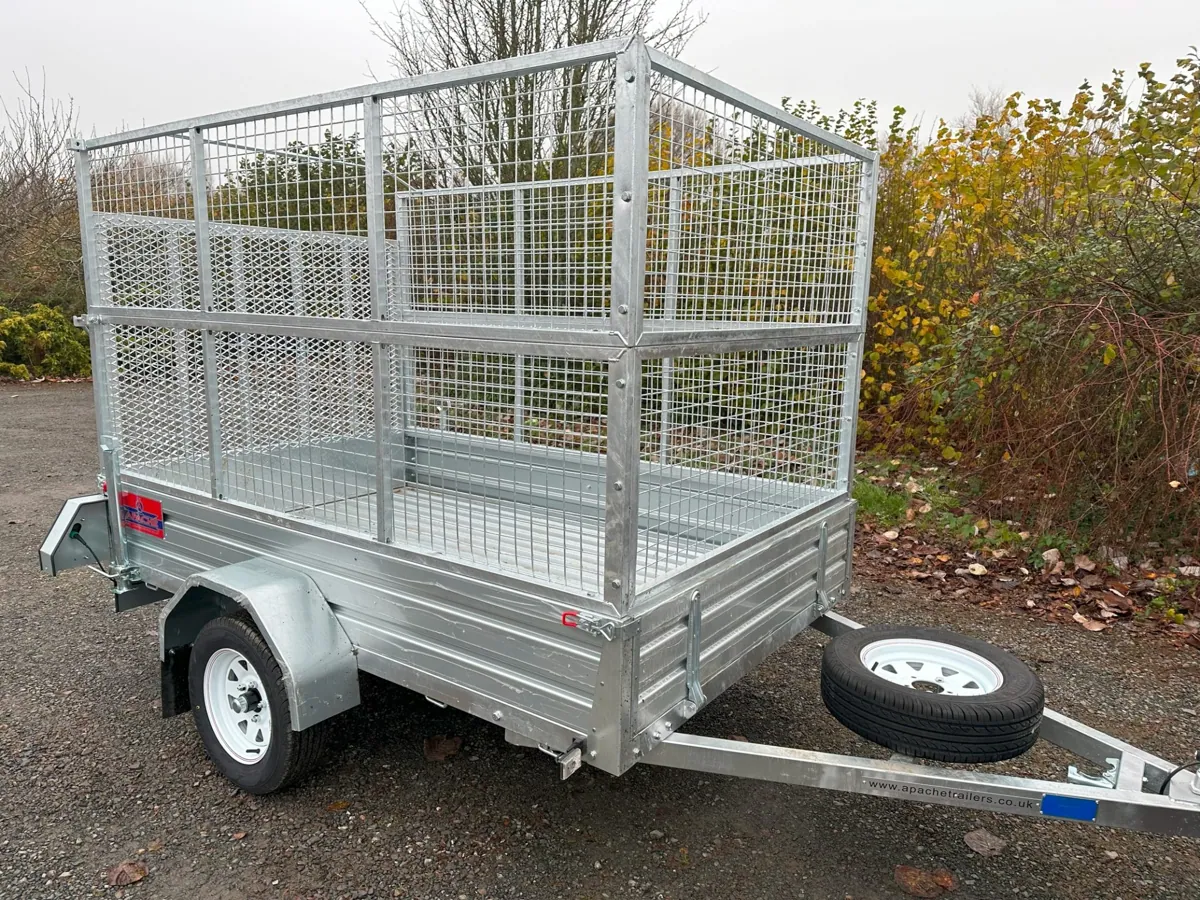

The Apache 83B Double Cage Ramp is a 7ft x 4ft utility trailer featuring a rear loading ramp and a double cage design for enhanced storage capacity. Manufactured in the UK, this trailer meets UK and EU type approval standards, making it a reliable and versatile transport solution.
Key Specifications & Dimensions:
- Bed Size: 7ft x 4ft (2100mm x 1200mm)
- Dimensions: 7ft x 4ft x 12in sides + 2ft + 2ft double cage (2100mm x 1200mm x 300mm sides + 600mm + 600mm double cage)
- Weight Capacity: 750 kg gross vehicle weight, 500 kg carrying capacity

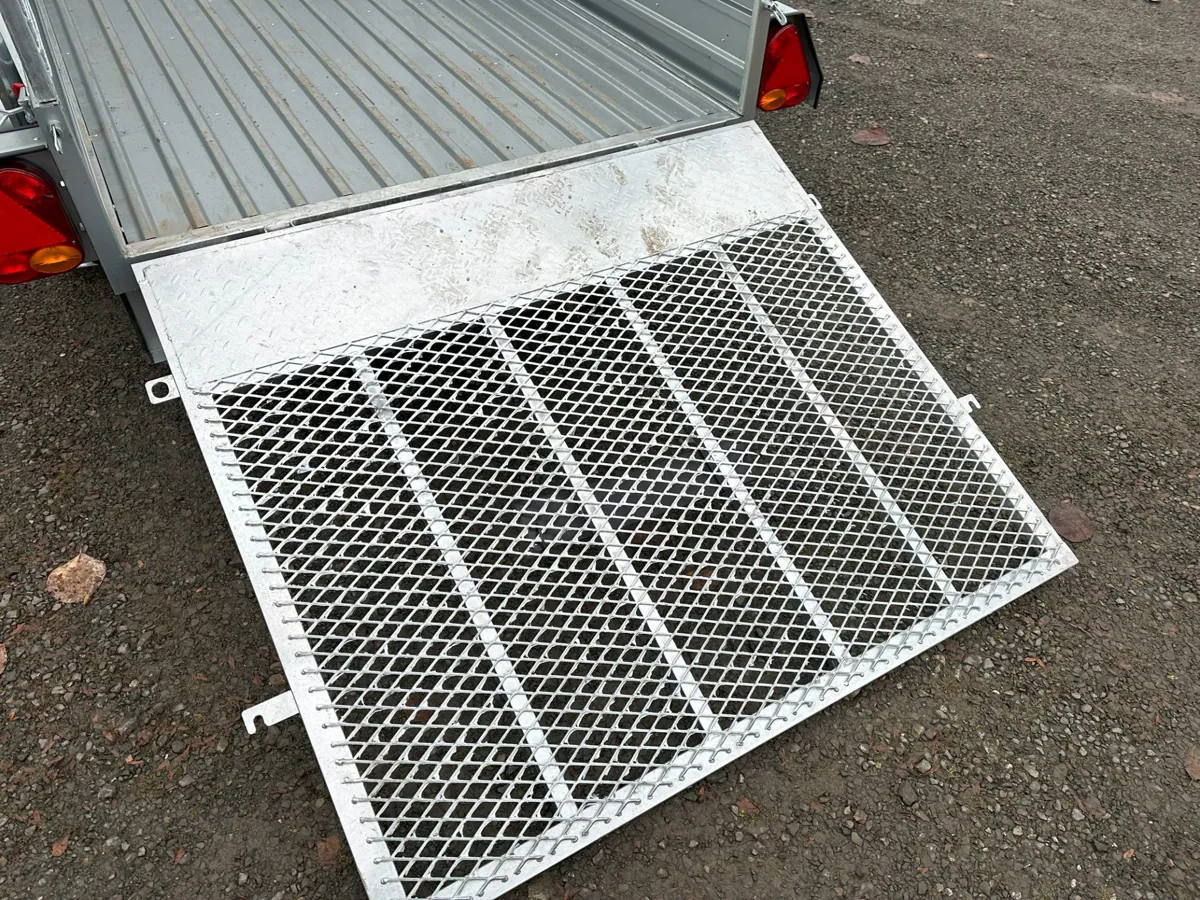

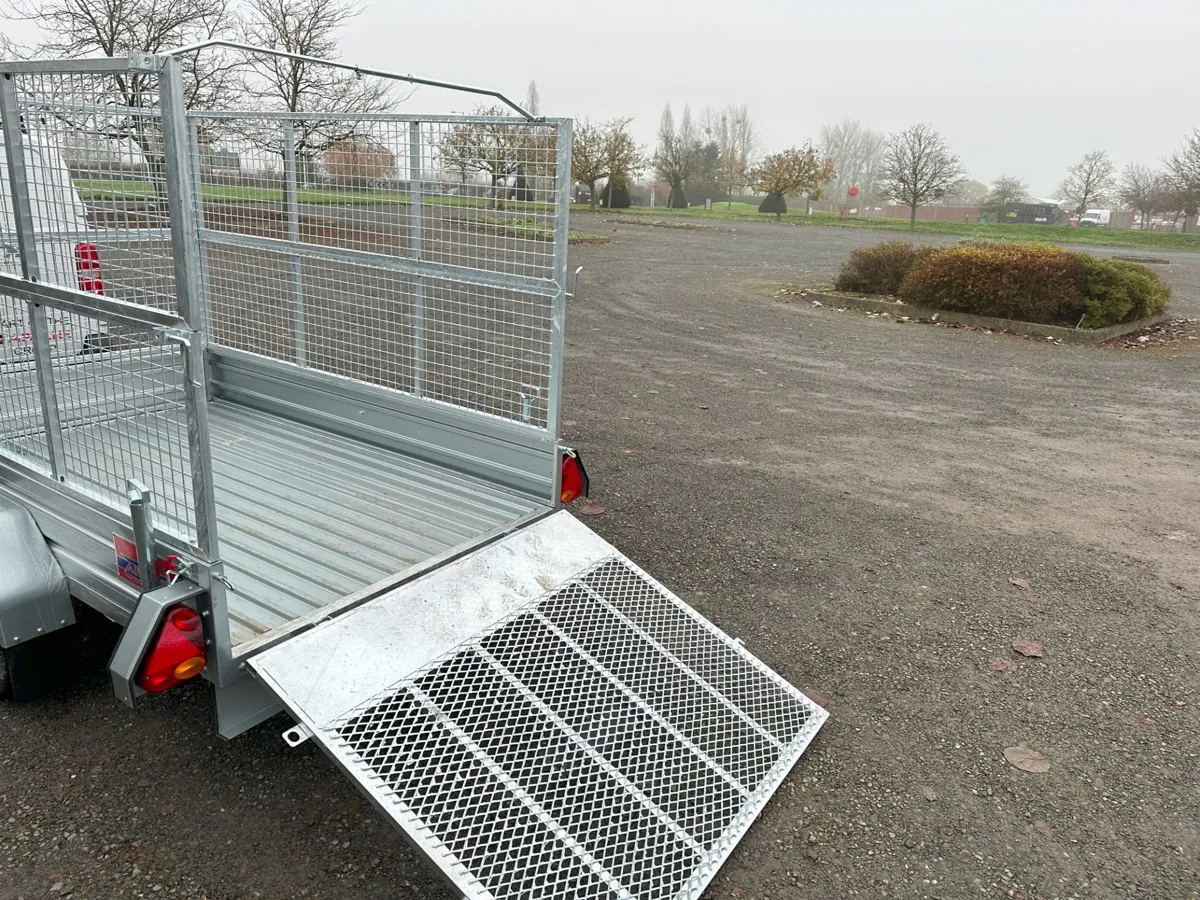

- Rear & Front Access: Drop loading ramp and drop lower front for versatile use
- Axle & Suspension: Single axle with heavy-duty leaf spring suspension
Build & Construction:
- Chassis & Floor: Heavy-duty galvanised steel chassis with hot-dipped solid steel flooring

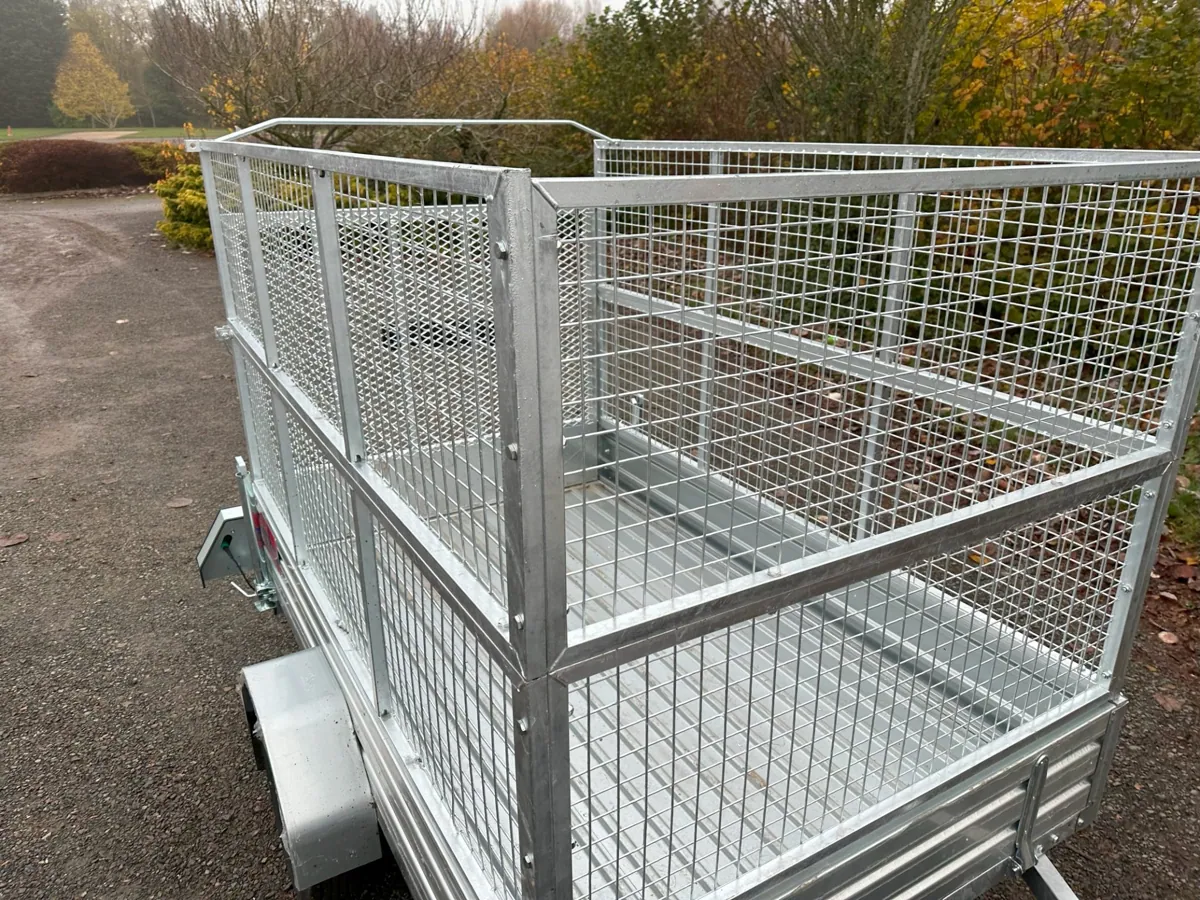

- Siding Material: Sturdy hot-dipped galvanised steel cage
- Finish: Grey/silver galvanised with certified lighting kit
- Wheels: Two 13″ steel wheels
Lighting & Electricals:
- Electricals: 7-pin heavy-duty socket (13-pin adapter available)
Optional Extras:

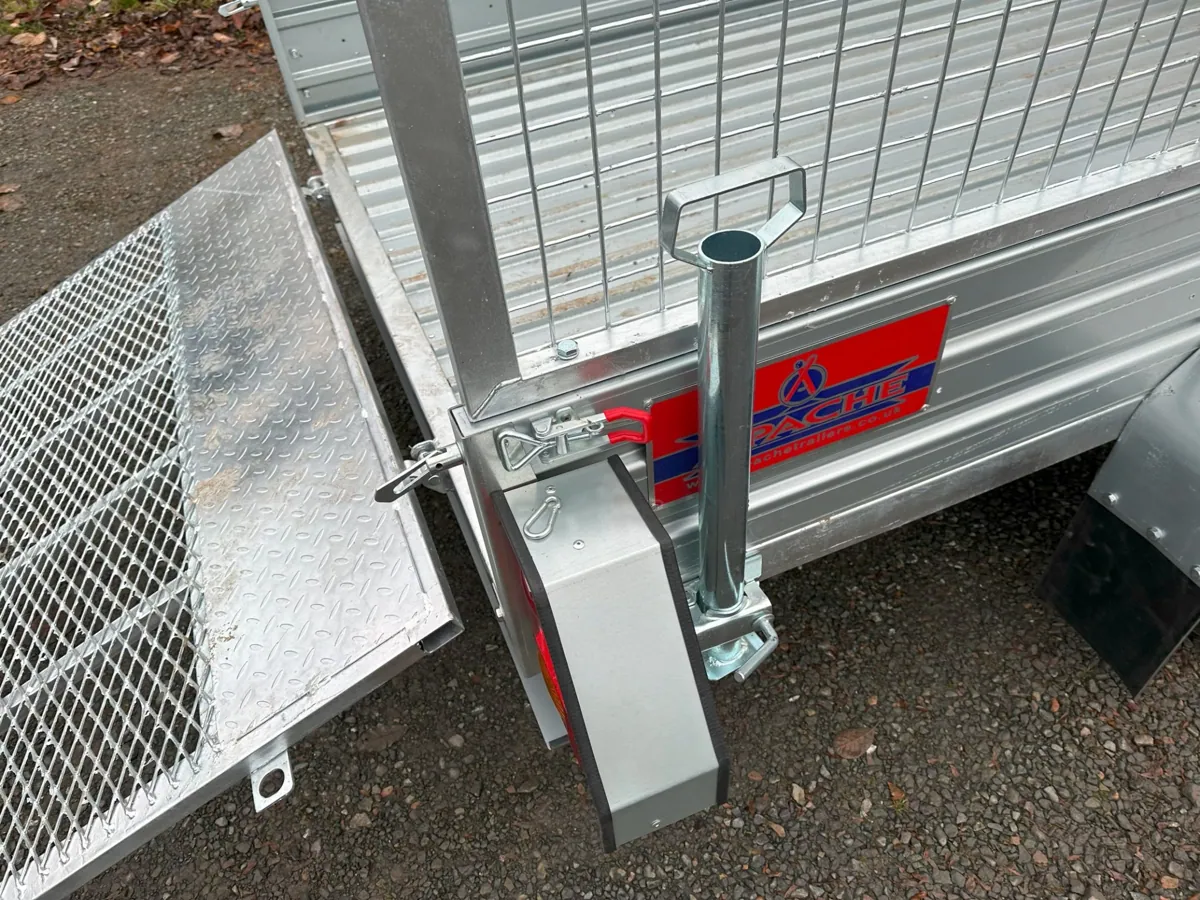

- Standard & Optional Features: Jockey wheel included. Optional extras include prop stands, heavy-duty tarpaulin cover, tarpaulin support bar, tie-downs, hitch lock, wheel clamp, locking wheel nuts, number plate, and fitted alloy toolbox.
- 13-pin adapter available
- Spare wheel
