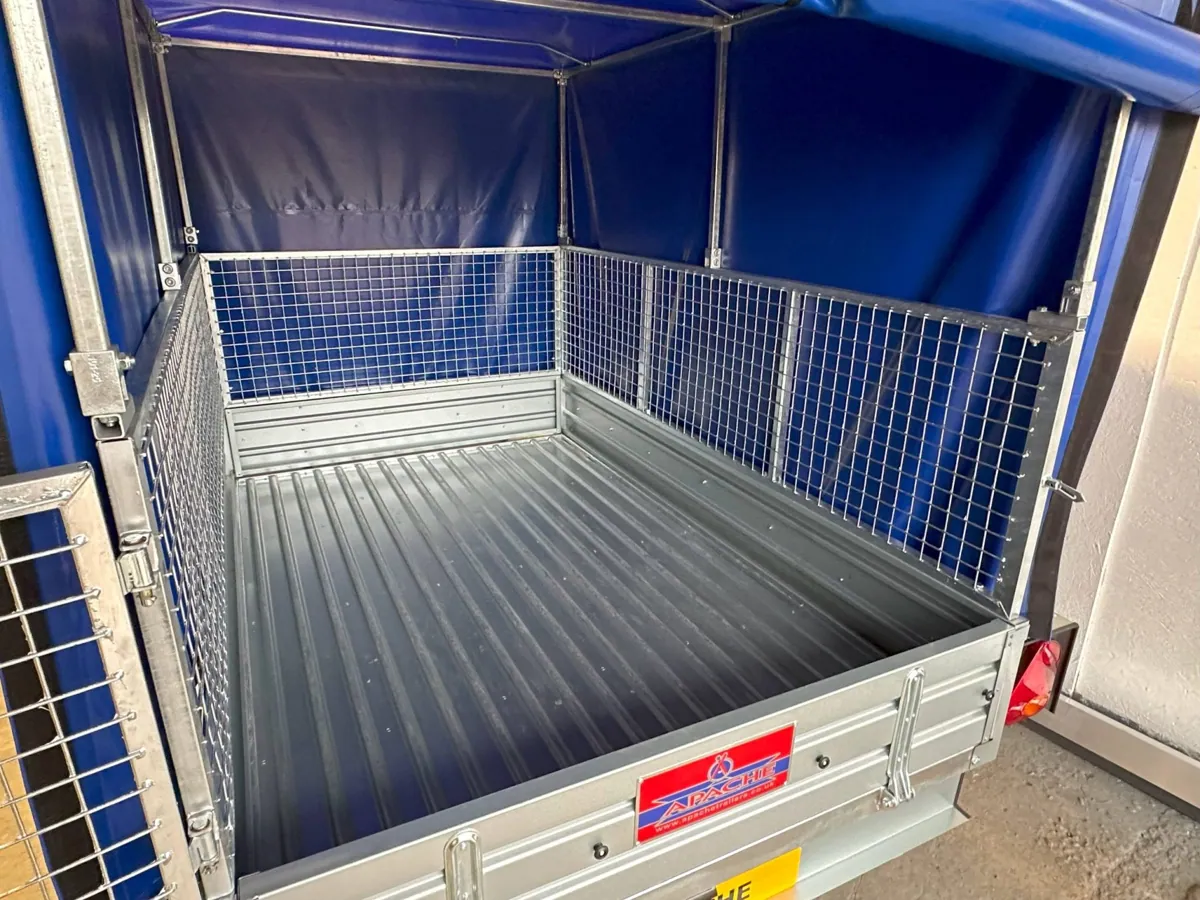

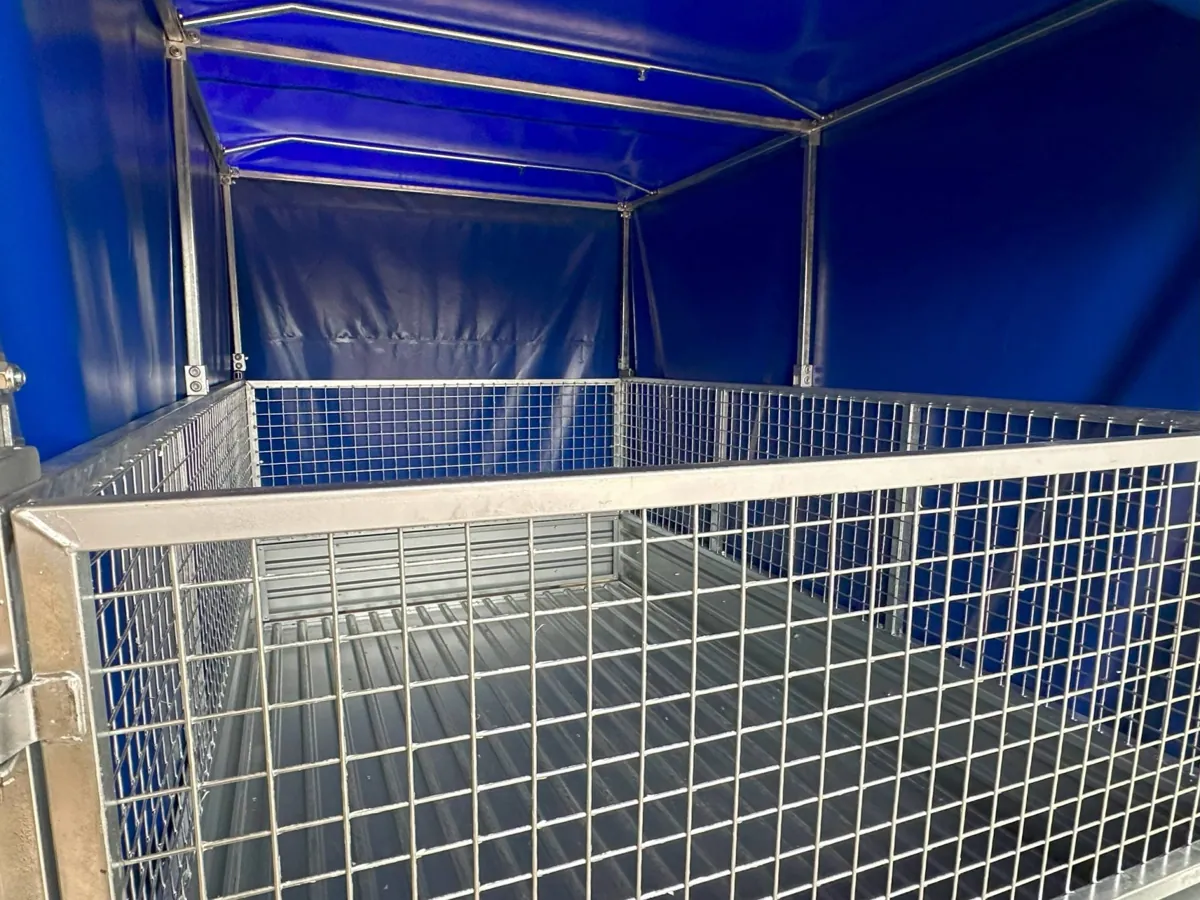

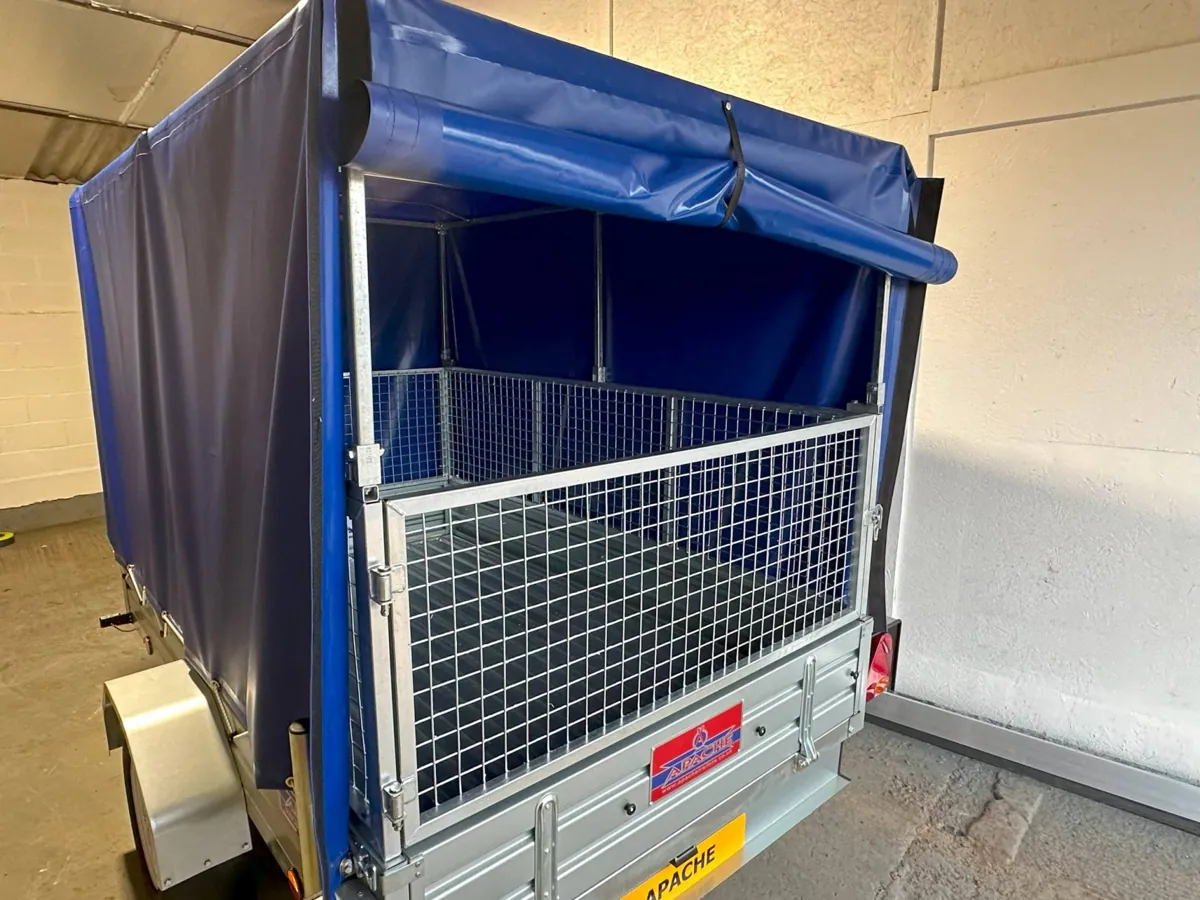

8ft x 4ft Tarp Box Trailer with Double Cage & Rear Gate

The Tarp Box Trailer with Rear Gate, Prop Stands, Double Cage & Heavy Duty Cover is a 8ft x 4ft tarp box trailer. Finished in grey/silver galvanised finish. Designed and manufactured in the UK by Apache, it is fully type-approved for UK and EU road use.

Key Specifications & Dimensions:

• Type approval: UK & EU approval. Certificate of conformity supplied
• Bed size (L x W): 8ft x 4ft (2400mm x 1200mm)
• Load opening area dimensions (W x H): 5ft x 4ft (1500mm x 1200mm)
• Internal dimensions (L x W x H): 8ft x 4ft x 5ft (2400mm x 1200mm x 1500mm)
• External dimensions (L x W x H): 12ft 6in x 5ft 7in x 6ft 5in (3800mm x 1730mm x 1950mm)
• Gross vehicle weight (GVW): 750 kg, unbraked
• Unladen weight: 320 kg
• Carrying capacity: Up to 430 kg

Build & Construction:

• Axle: Single
• Chassis: Heavy duty galvanised steel
• Hitch type: Bradley cast tow hitch
• Suspension: Heavy duty leaf spring
• Rear opening: Drop lower rear & swing gate
• Floor material: Hot dipped heavy gauge galvanised solid steel
• Siding material: 300mm galvanised solid steel cage and fixing and heavy duty tarp
• Colour: Grey/silver galvanised finish
• Wheels: 2 x 13in steel wheels

Lighting & Electricals:

• Lights: Certified lighting kit supplied & fitted as standard
• Electricals: 7 pin heavy duty socket (13 pin adapter available)

Included as Standard:

• Jockey wheel
• Heavy duty fitted tarpaulin cover
• Tarpaulin support bar

Optional Extras:

• Spare wheel
• Prop stands
• Tie downs
• Hitch lock
• Wheel clamp
• Locking wheel nuts
• Number plate
• Fitted alloy metal toolbox

Available Options

• Internal box height: 4ft internal height, 5ft internal height, 6ft internal height

Tell us the options you want when you order and we'll confirm the price.
