40ft Tilt Bed Trailer v2

40ft Tilt Bed Trailer for Sale

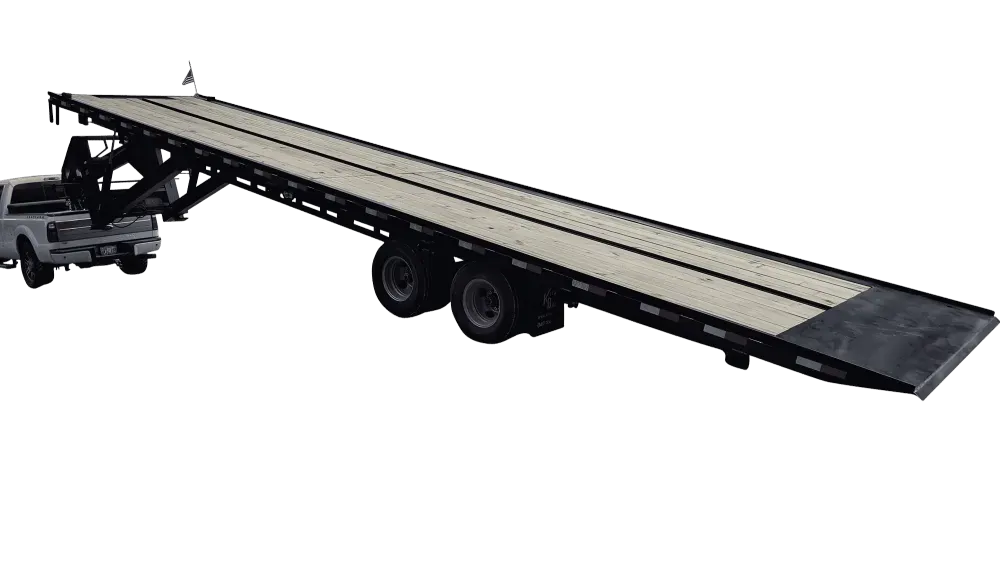

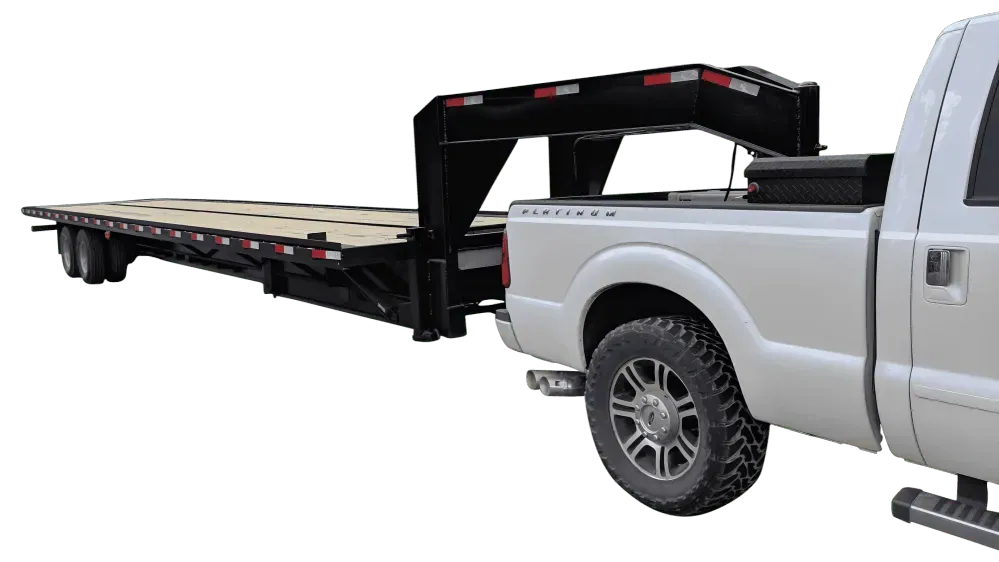

This 40-foot tilt bed trailer is a heavy-duty hydraulic hauler built for operators who need to load equipment, containers, and machinery without a separate ramp setup. With two 10,000-lb axles on dual wheels and electric brakes, plus a 12-volt hydraulic pump driving a twin-cylinder lift, this tilt bed trailer lowers to the ground so you can drive or winch loads straight on. It's a workhorse for construction, agriculture, and container transport.

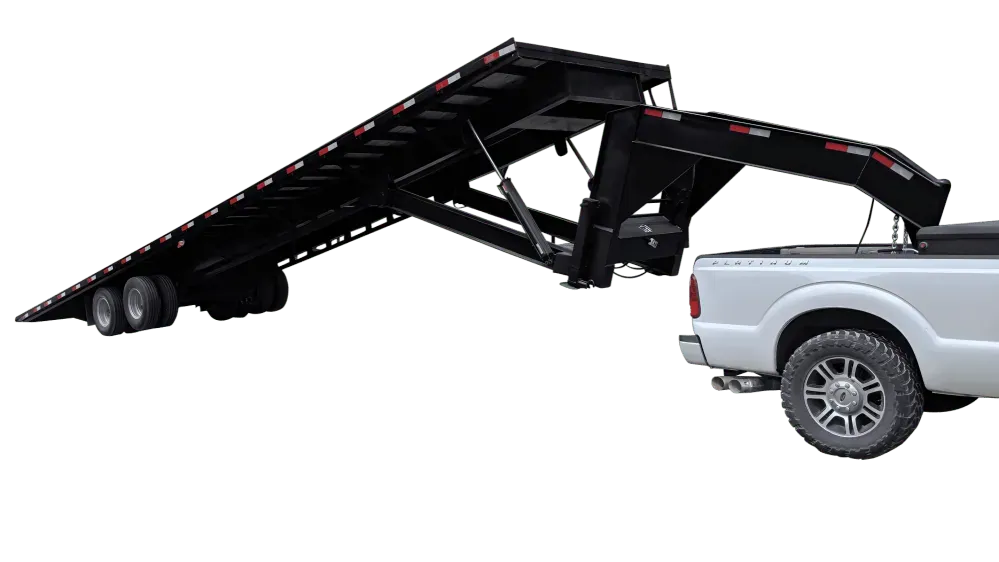

Hydraulic Tilt for Effortless Loading

The powered tilt eliminates the hassle and hazard of heavy loading ramps: the bed tilts down at the rear, you load, and the hydraulics bring it back to level. A winch plate and eight 4-inch side winches let you strap and tension cargo securely across the deck, while 6-inch steel runners and angle guides on the outside of the floor protect the boards and keep loads tracking straight. The 30,000-lb adjustable coupler matches a variety of tow setups.

Specifications

• Two 10,000# axles with electric brakes, dual wheels
• Emergency breakaway kit with built-in charger and battery level indicator

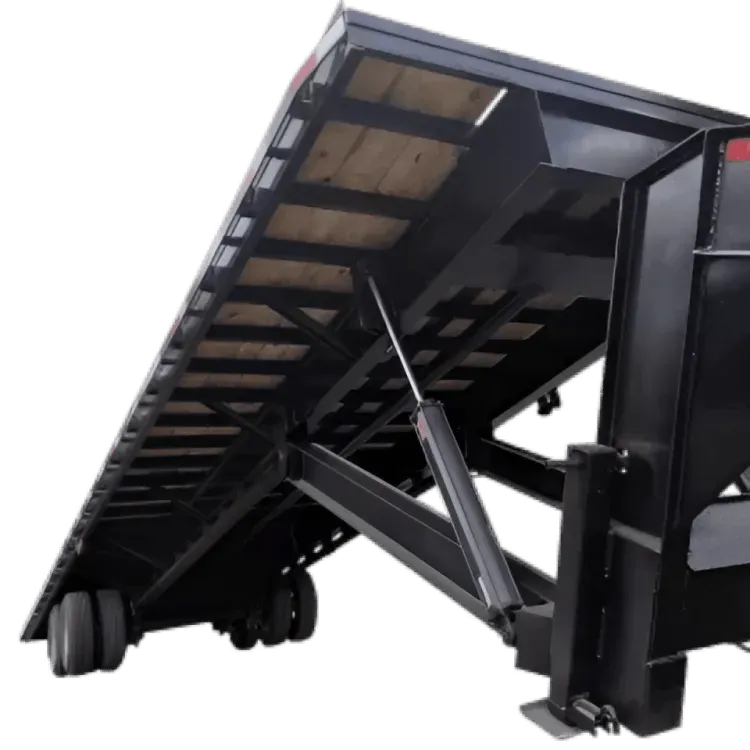

• 12-volt hydraulic pump, twin-cylinder lift
• 30,000# adjustable coupler; two 12,000# jacks
• 12" x 19# I-beam frame and neck
• 3" channel crossmembers on 16" centers
• Winch plate; 8 x 4" winches on sides
• 6" steel runners on outside run of boards
• 2"x2"x1/4" angle guides on outside of floor

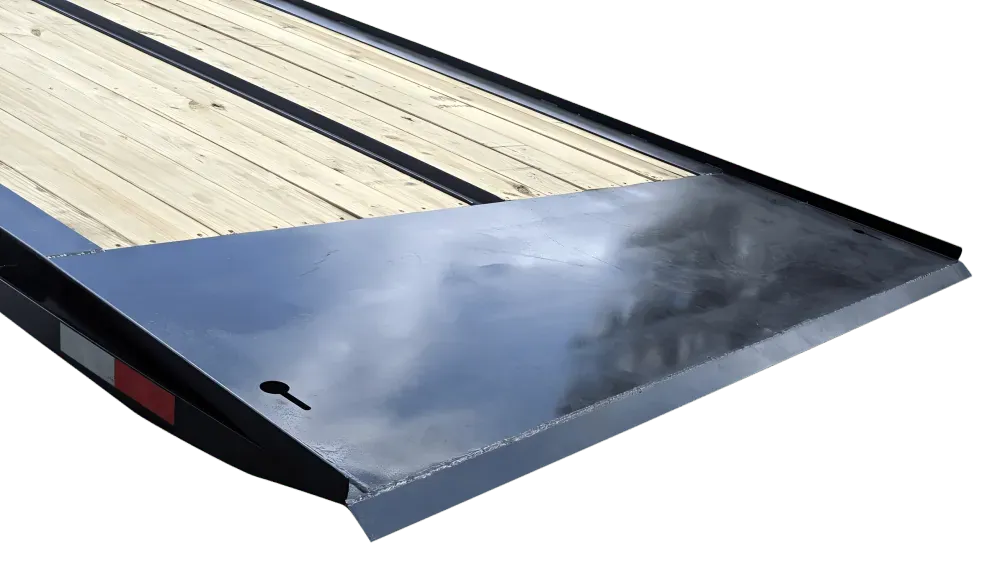

• Treated pine wood floor; bed tapered at back
• 235/80/16 (E) 10-ply tires; silver mod wheels
• LED lights and DOT reflective tape; sealed wiring harness; enamel paint finish
• Safety chains

When evaluating a tilt bed trailer, confirm your tow vehicle can handle the combined axle capacity, check that the hydraulic pump and cylinders cycle smoothly, and inspect the deck boards and tires. The heavy I-beam frame and dual-wheel axles here point to a trailer meant for serious, repeated loads rather than occasional light duty.
