20Ft X 8Ft Open Mesh Floor Bunded Store

20ft x 8ft Open Mesh Floor Bunded Store for Sale

The 20ft x 8ft open mesh floor bunded store is a modified container built specifically for storing chemicals and hazardous materials, converted from a new one-trip shipping container. Its defining feature is a galvanised open mesh floor suspended above a steel bunded base: you stack drums and IBCs on the walk-on grating while any leaks or spills drain down into the sealed bund below, keeping the storage surface clean and the containment sealed.

How the Open Mesh Design Works

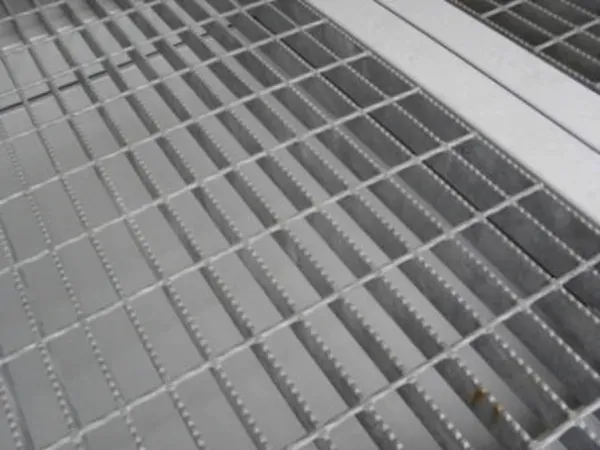

Compared with a flat bunded floor, the raised mesh grating keeps stored containers up out of any liquid that has already escaped, which protects packaging from standing in spilled product and makes inspection and clean-up simpler. The galvanised mesh is rated for a floor loading of 7.5 kN per square meter, so it comfortably carries palletised drums and totes, while the bunded base beneath provides the secondary containment that hazardous-material storage demands.

Secure, Ventilated, Portable

Starting from a one-trip container means this store arrives structurally near-new. Exterior hinged double doors at one end open the full width for loading, secured with two locking bars per door and a factory-fitted lockbox that protects the padlock. Forklift pockets allow the whole unit to be lifted and relocated, and a generous 24 vents keep air moving to help disperse fumes and control condensation inside.

Specifications

• New, converted from a one-trip shipping container
• External (L x W x H): 6.06m x 2.44m x 2.59m
• Internal (L x W x H): 5.84m x 2.35m x 2.39m
• Door opening: 2.34m wide x 2.28m high
• Weight: 2820 kg
• Floor: galvanised open mesh over steel bunded floor
• Mesh floor loading: 7.5 kN per square meter
• Exterior hinged double doors at end, two locking bars each
• Factory-fitted lockbox; forklift pockets
• 24 vents

When choosing a bunded store, match the containment volume and floor loading to the weight and type of product you’ll keep inside, and check your local hazardous-storage regulations before ordering. Site the unit on firm, level ground so the frame sits square and the doors seal correctly.
