2024 RawMaxx Trailers 7X16 14K Powder Coated Dump w/ Tarp Kit

2024 RawMaxx 7X16 14K Powder Coated Dump Trailer for Sale

This dump trailer is a new 2024 RawMaxx 7X16 (model LPX-16-BP14K) built for contractors, excavators, landscapers, and property owners who spend their days moving dirt, gravel, mulch, and demolition debris. Rated at a 14,000 lb GVWR with an 8,104 lb payload, it wears a durable three-stage powder coat and comes upgraded with 44″ high sides and a manual tarp kit, so it is ready to work hard the moment it reaches your yard.

Serious Capacity for Demanding Jobs

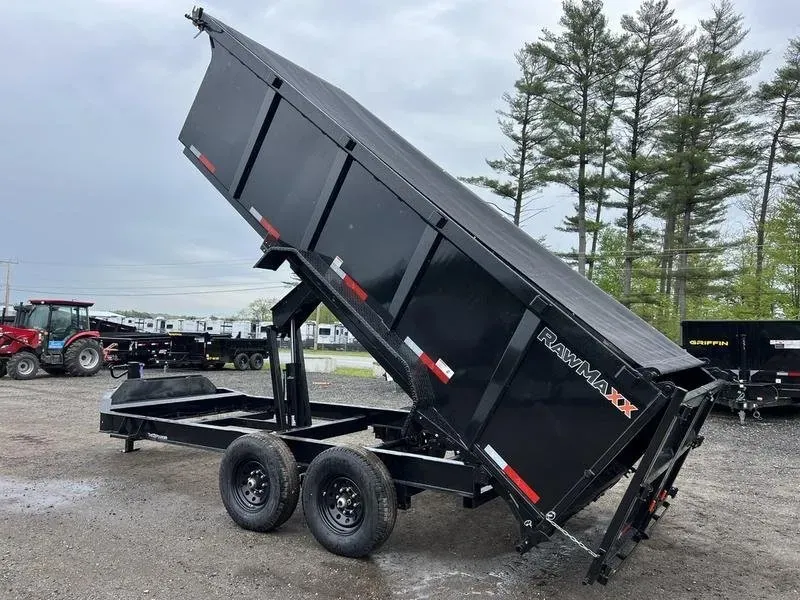

An 8″ I-beam frame and tongue with crossmembers on 16″ centers give this dump trailer the backbone to carry dense, heavy loads without complaint, while the scissor lift with a 620 cylinder delivers quick, controlled dumps at the push of a button. The tall 44″ sides let you stack more volume per trip, which means fewer runs back to the pit or the yard and better use of your day on busy sites.

One Trailer, Several Jobs

Versatility is where this RawMaxx really stands out. Rear barn doors with integrated spreader doors let you choose between a full unload and a metered spread when you are laying gravel or aggregate along a driveway or lot. When the dumping is done, 6′ slide-out ramps turn the same trailer into a capable equipment hauler for a compact machine or a mini excavator, so a single unit covers hauling, dumping, and loading duties without owning three separate trailers.

Features

• Model LPX-16-BP14K, black, new condition
• GVWR 14,000 lbs; empty weight 5,896 lbs; payload 8,104 lbs

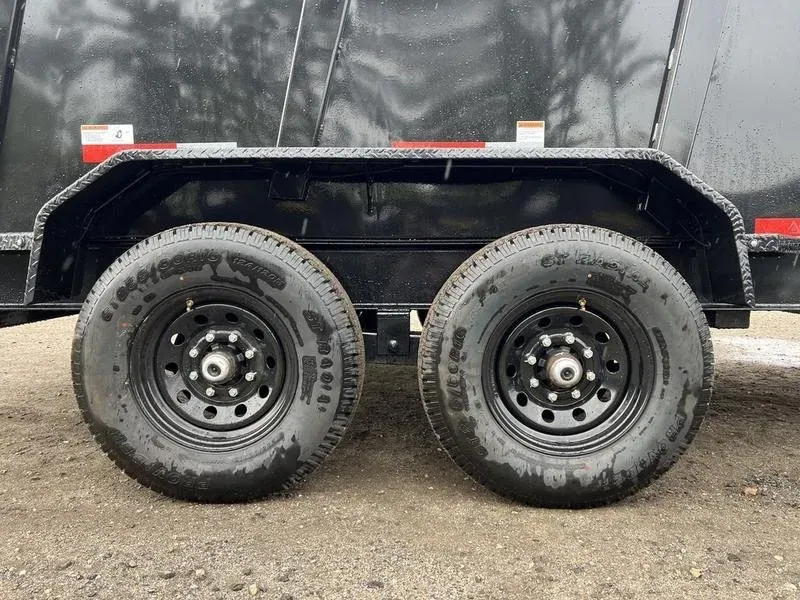

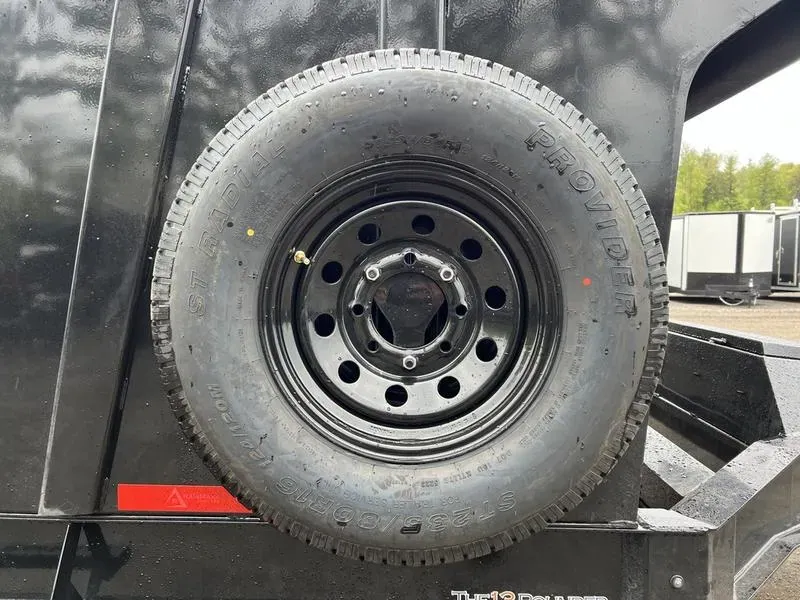

• (2) electric-brake spring axles, 16″ black wheels, spare tire
• 8″ I-beam frame and tongue, crossmembers on 16″ centers
• 44″ high sides (added option)
• Rear barn doors with integrated spreader doors
• Scissor lift with 620 cylinder
• 6′ slide-out ramps
• Manual tarp kit
• Adjustable 2-5/16″ ball coupler, safety chains, 12K drop-leg jack
• DOT-approved LED lights and 3-stage powder coat

When choosing a dump trailer, match the box volume and GVWR to your heaviest, densest loads and confirm your truck can tow a fully loaded 14K unit with margin to spare. As a new trailer this RawMaxx arrives without wear, but it is still smart to verify hydraulic operation, battery charge, and tire condition before your first load, and to secure the tarp on every road trip.
