2024 Diamond Deckover Equipment Trailer

2024 Diamond C 8.5×24 15K Deckover Equipment Trailer for Sale

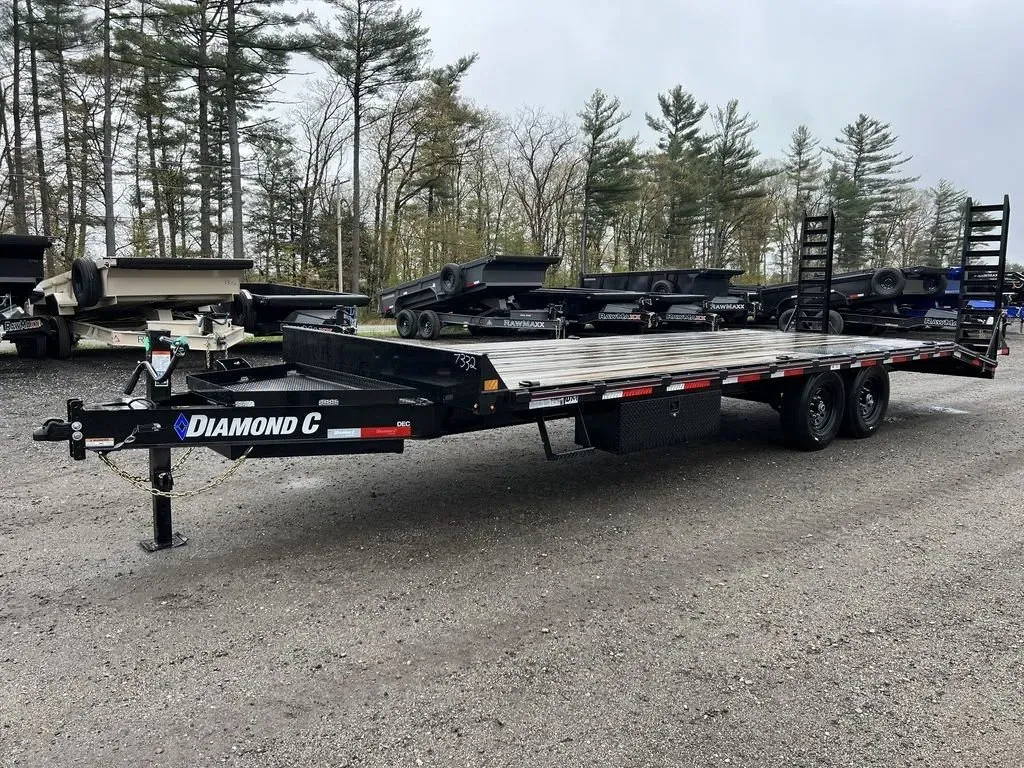

When you are moving tractors, skid steers, or wide implements, this deckover equipment trailer earns its place in the fleet. The 2024 Diamond C 8.5×24 15K arrives new in a durable black powder coat and gives you a full 8.5′ wide deck with no fenders in the way, carrying a 14,900 lb GVWR and a 10,510 lb payload on a heavy I-beam frame that is built to shrug off repeated, demanding work.

Deckover Width for Wide Loads

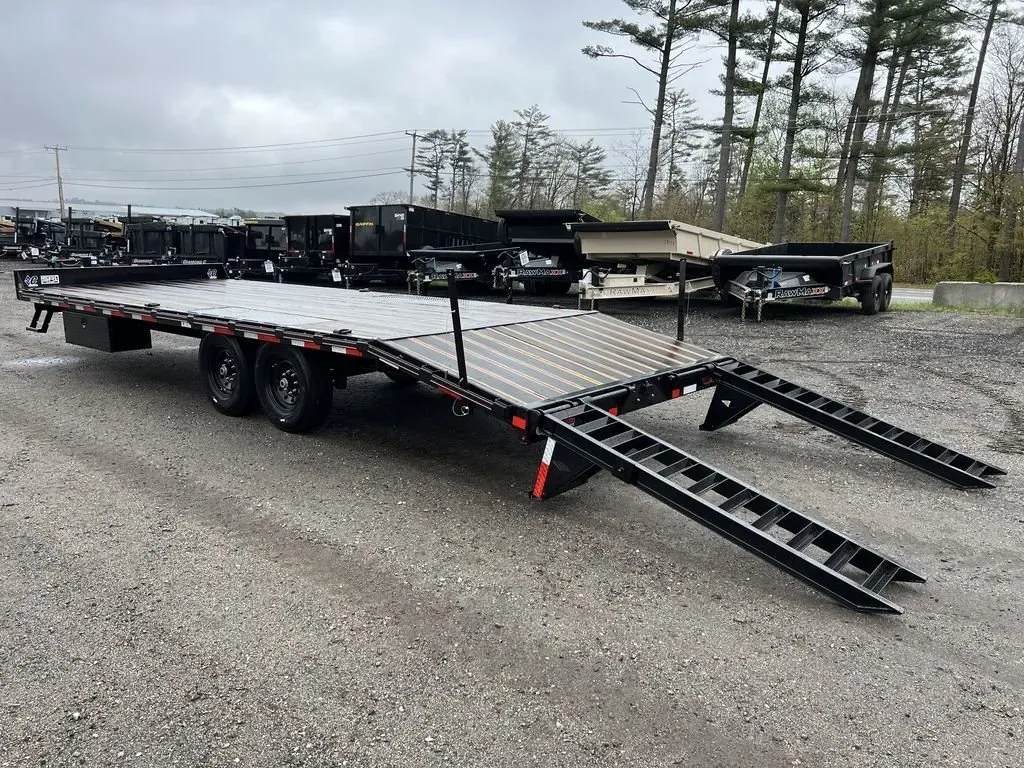

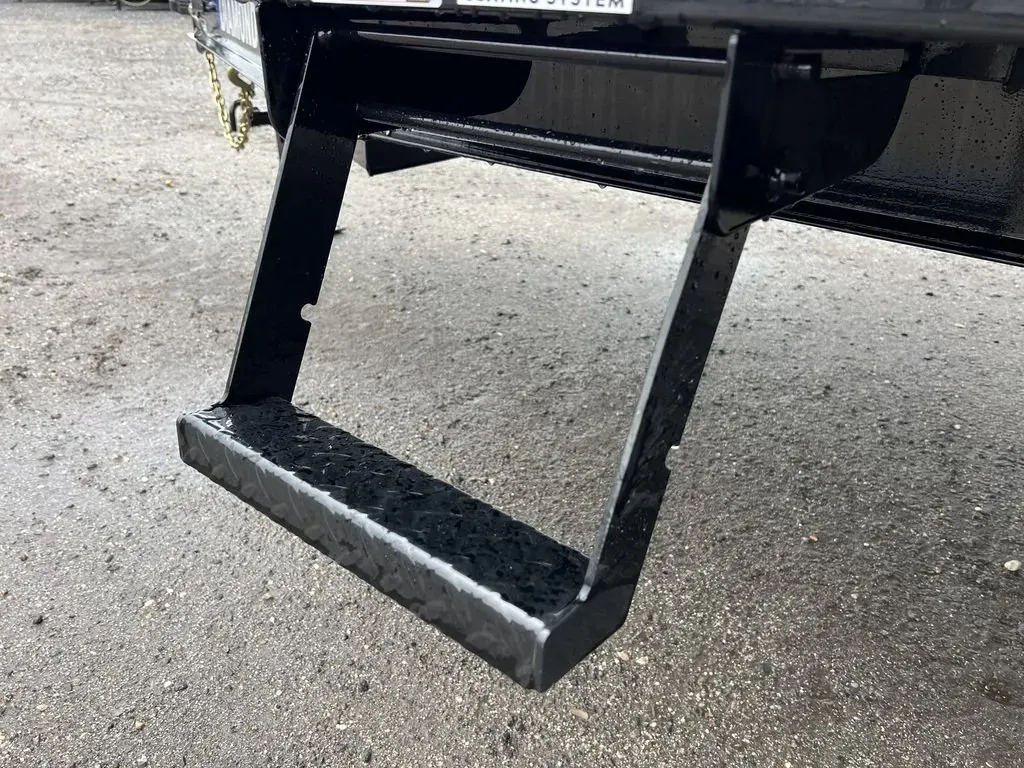

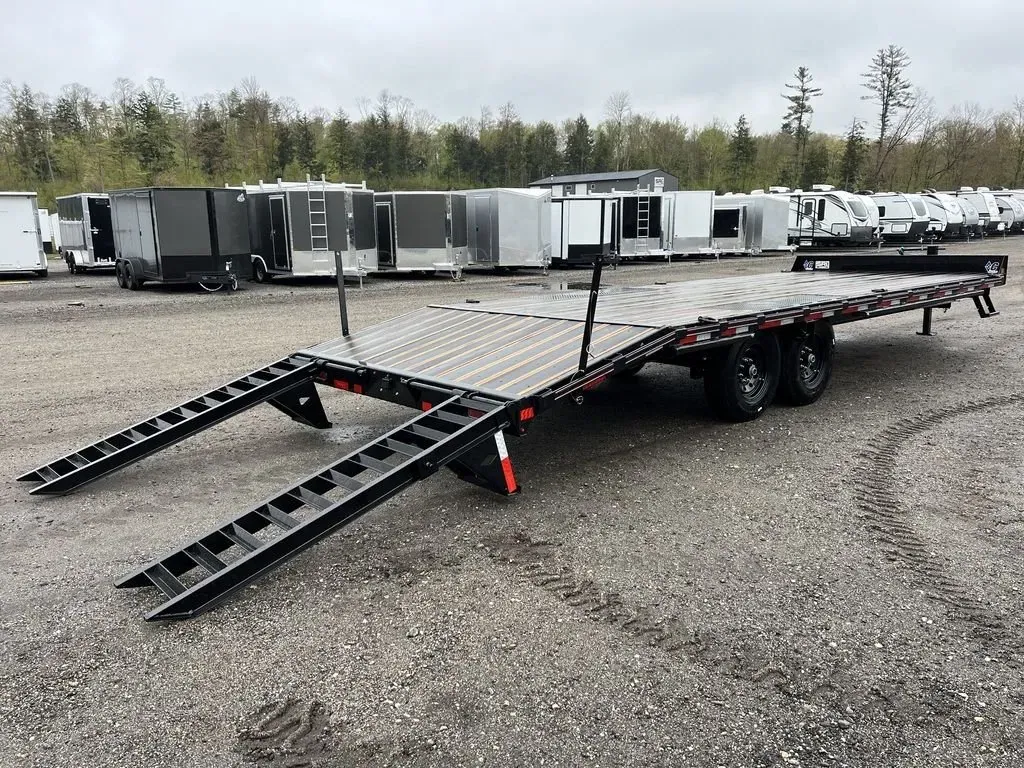

A deckover design runs the deck above the tires rather than between them, so the entire 102″ width stays usable and there are no wheel wells to steer around when you position a load. That layout is a natural fit for wide equipment, oversized attachments, and stacked pallets. The 48″ dovetail with 72″ flip-knee ramps keeps the load angle manageable for low machines, and front retractable steps give you a safe way to climb aboard rather than clambering over the rail.

Built for Heavy, Repeated Hauls

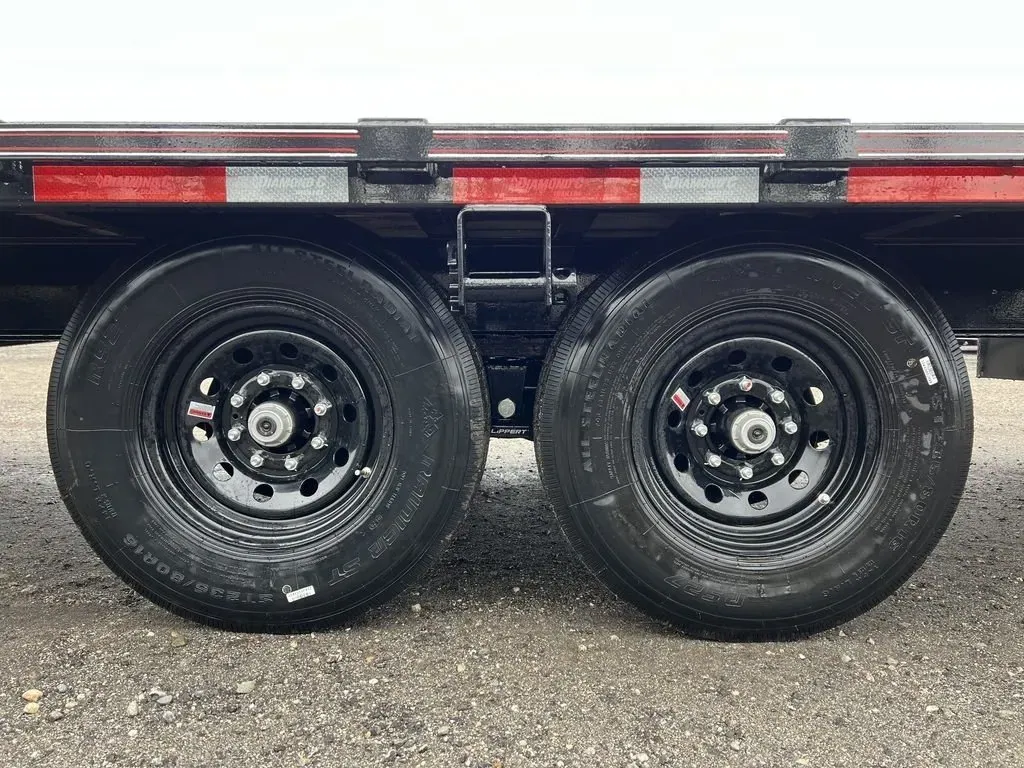

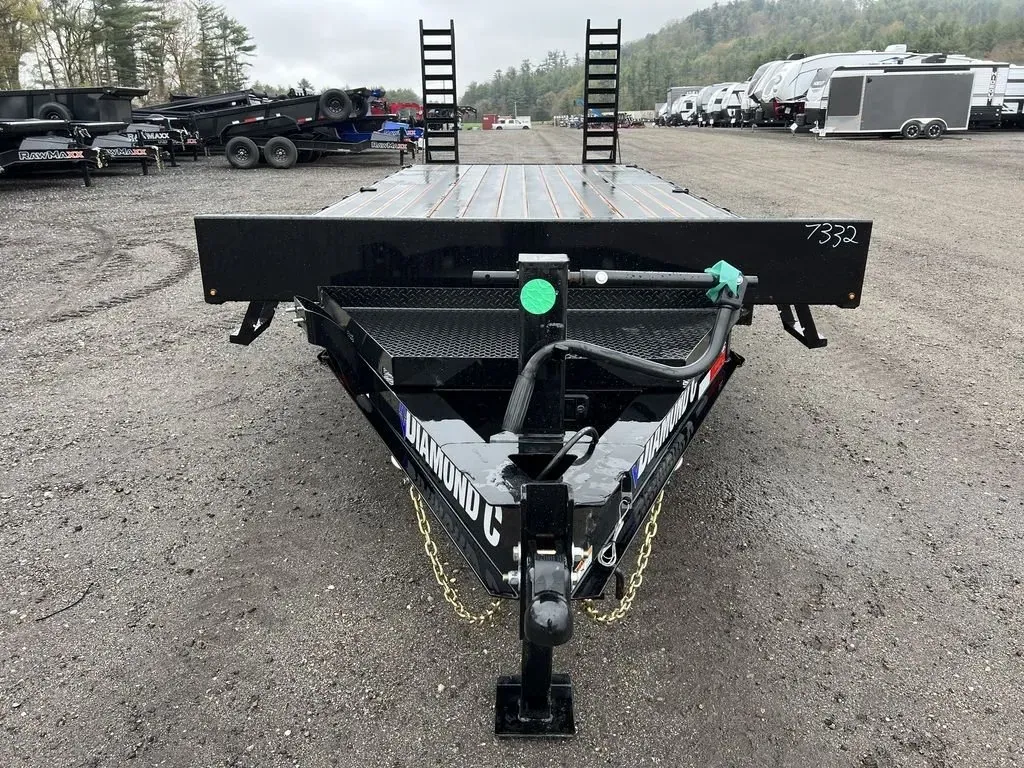

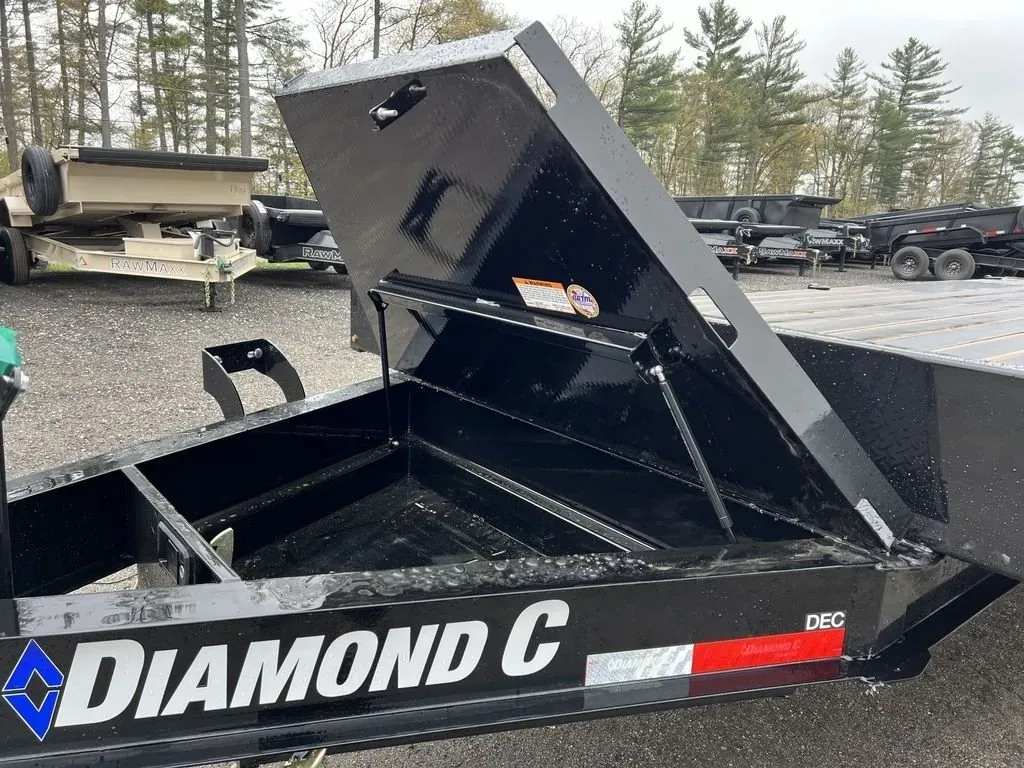

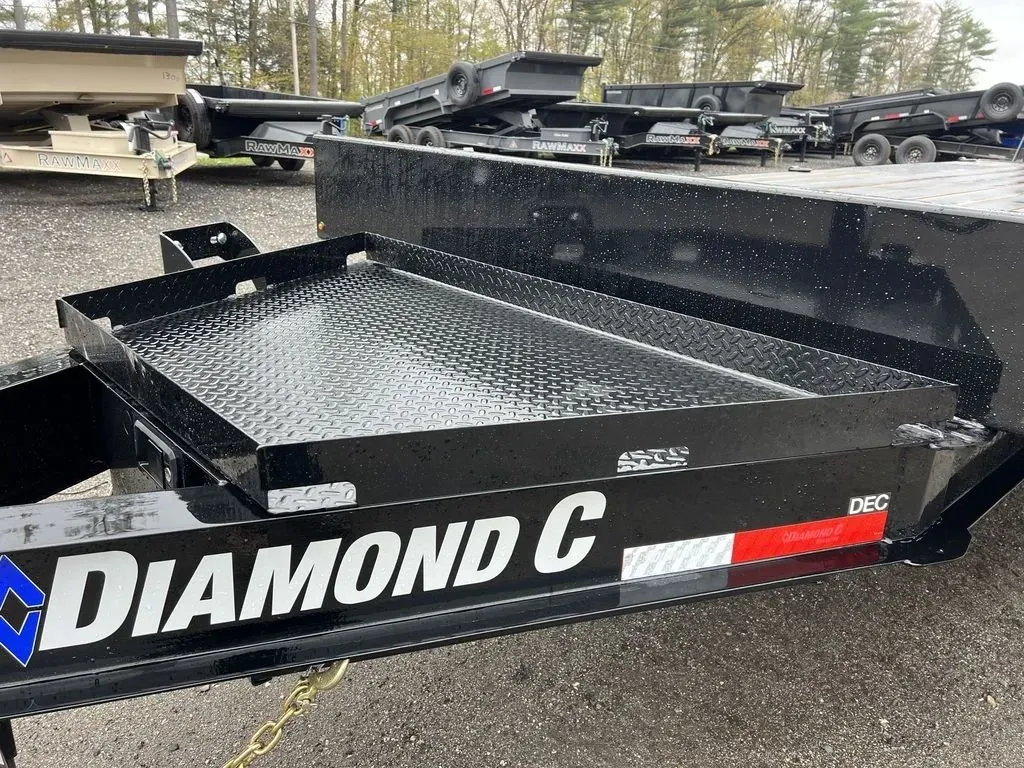

Two 7K electric drum braked axles ride on 6-leaf slipper spring suspension, a combination that soaks up rough roads while giving you confident stopping power under load. The frame pairs an 8″ I-beam main rail with 3″ I-beam crossmembers on 16″ centers for a stiff, supportive deck. Practical touches such as the V-tongue storage box, the underslung toolbox, and the slide track with a welded ratchet keep chains, binders, and straps organized so you spend less time hunting for gear and more time working.

Specifications

• 2024 Diamond C, model DEC20724x102, new, black
• Two 7K electric drum braked axles, 6-leaf slipper spring suspension
• 8″x10 lb I-beam frame, 3″ I-beam crossmembers on 16″ centers
• 48″ dovetail with 72″ flip-knee ramps
• Full Blackwood decking, front retractable steps
• 2-5/16″ 21K Demco EZ-Latch coupler, 12K drop-leg jack
• V-tongue storage box with lid, 14″x14″x42 underslung toolbox

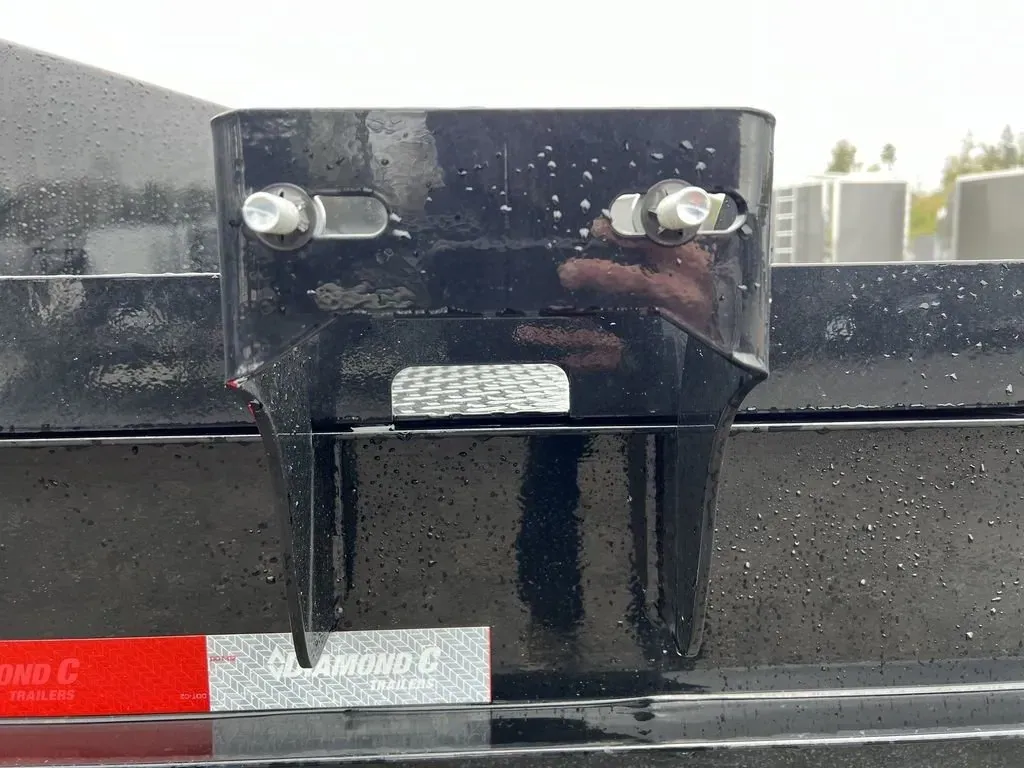

• 5″x2″ rectangle tube lace rail, 3/8″ rub rail with stake pockets and pipe spools
• Slide track with welded ratchet, six extra D-rings, spare mount
• 12″ formed front bumper, LED lighting
• GVWR 14,900 lbs, empty 4,390 lbs, payload 10,510 lbs

When comparing deckover trailers, remember the raised deck trades a taller overall load height for full usable width, so plan your loading approach for tall equipment and watch clearances. Confirm your cargo fits within the 10,510 lb payload and that your tow vehicle is rated for it, then check brake function and ramp operation at delivery.
