2024 Diamond C 8.5×22 7K Deckover Trailer w/Slide-In Ramps

2024 Diamond C 8.5×22 7K Deckover Trailer for Sale

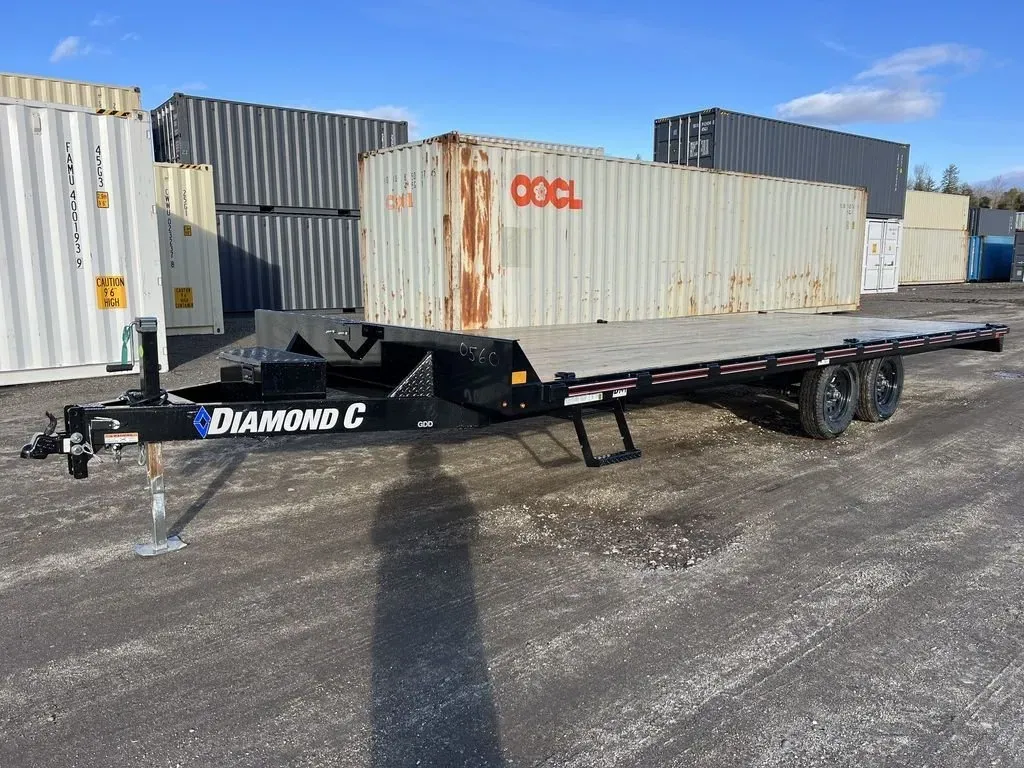

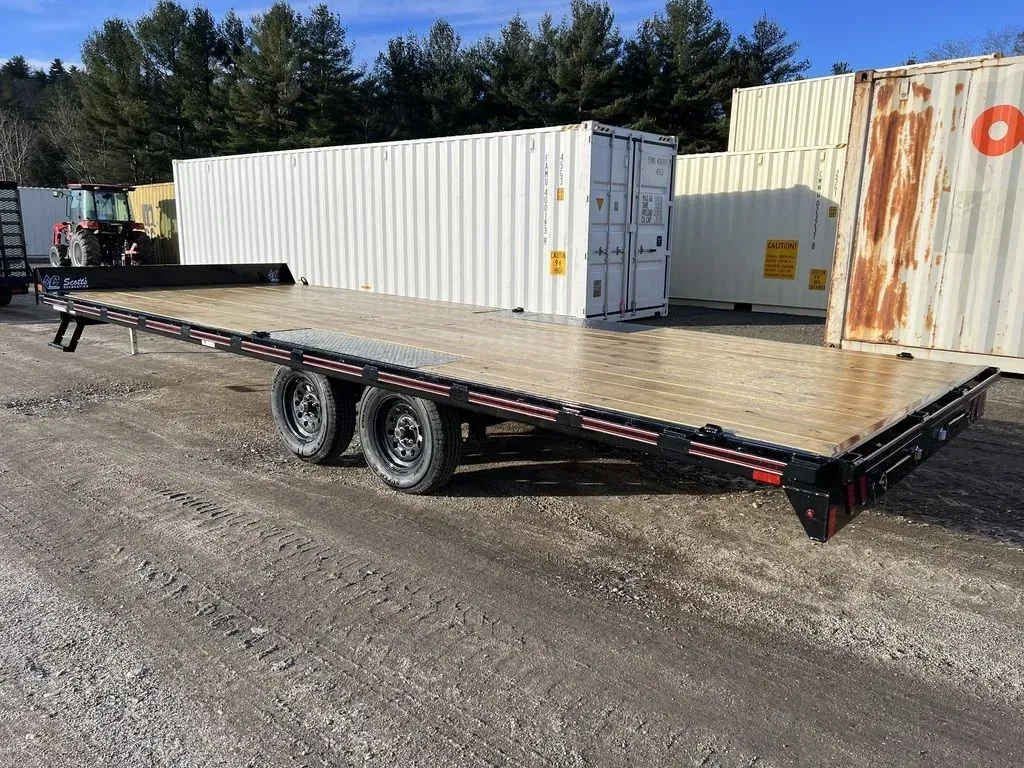

Built for haulers who need a wide, flat, obstacle-free deck, this new 2024 Diamond C 8.5×22 deckover trailer (model GDD23522x102) rides above the wheels so you get a full 8.5-foot-wide working surface with no fender intrusion. Finished in black and rated at a 7,000 lb GVWR, this 7K deckover equipment trailer suits landscapers, small-equipment operators, and property owners moving mowers, UTVs, lumber, and pallets across a generous 22-foot deck.

Why a Deckover Design Works Harder

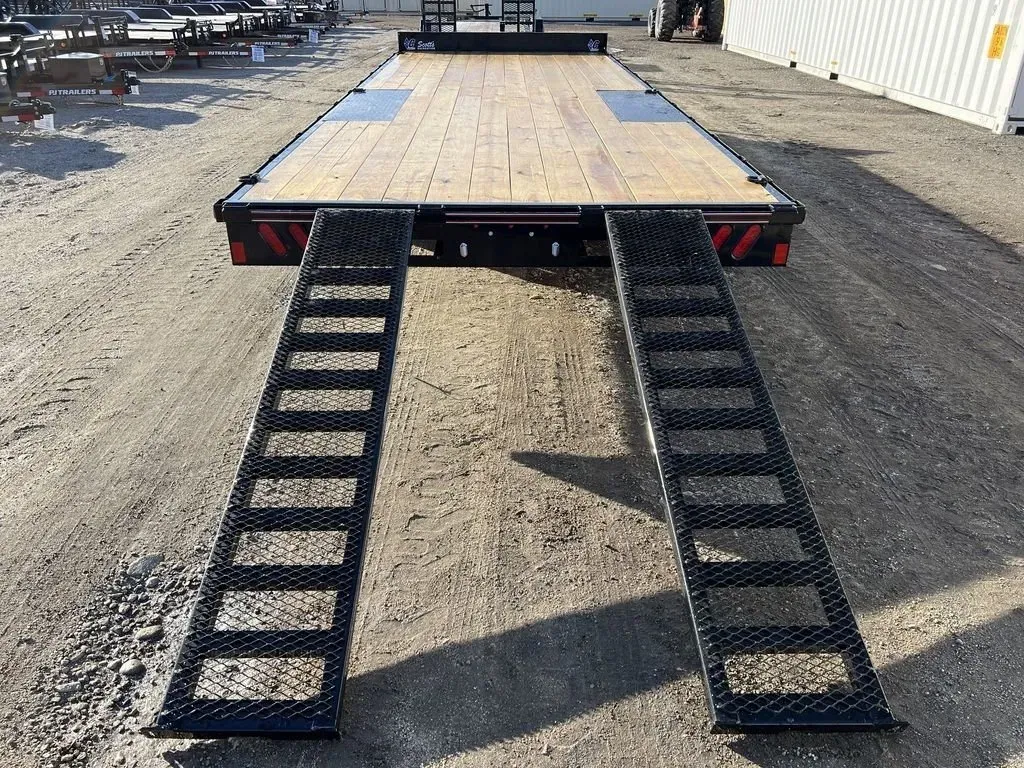

Because the deck sits over the tires instead of between them, you can load wide implements and skids that simply won’t fit on a standard between-the-wheels trailer. The integrated slide-in ramps store on the rear when not in use, so there’s nothing to trip over during loading, and the tandem electric-brake axles give you confident, controlled stops even under a full payload.

Specifications

• Year: 2024, Make: Diamond C, Model GDD23522x102, Black, New condition

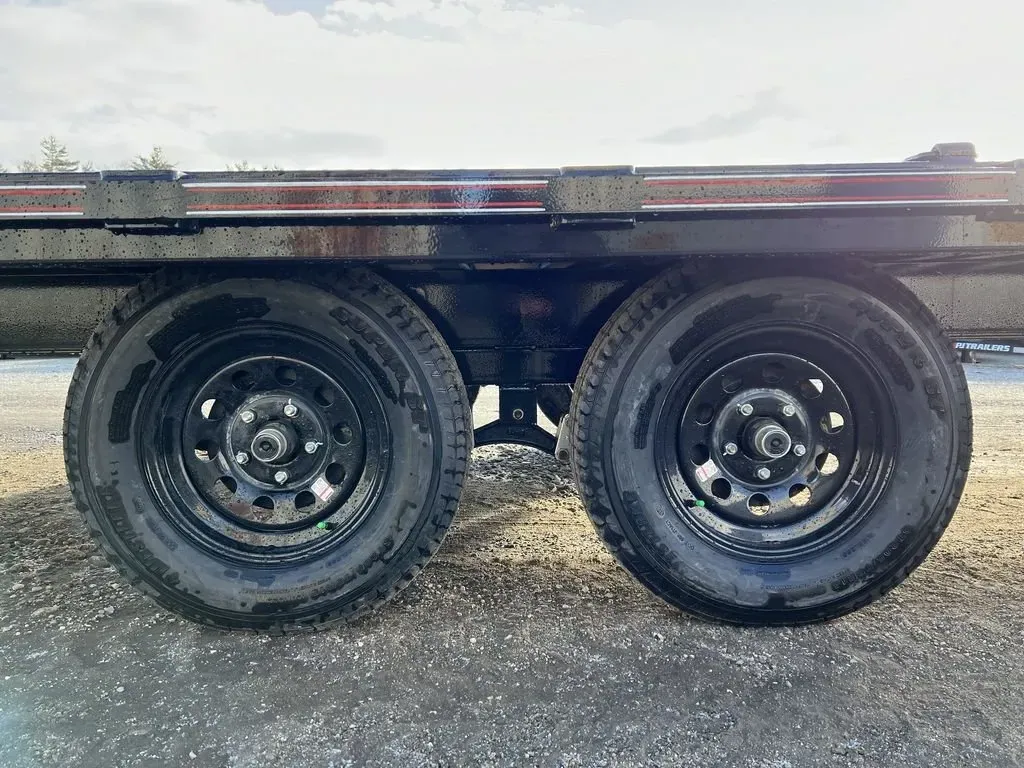

• Two 3.5K Super Lube electric brake axles with 4-leaf spring suspension

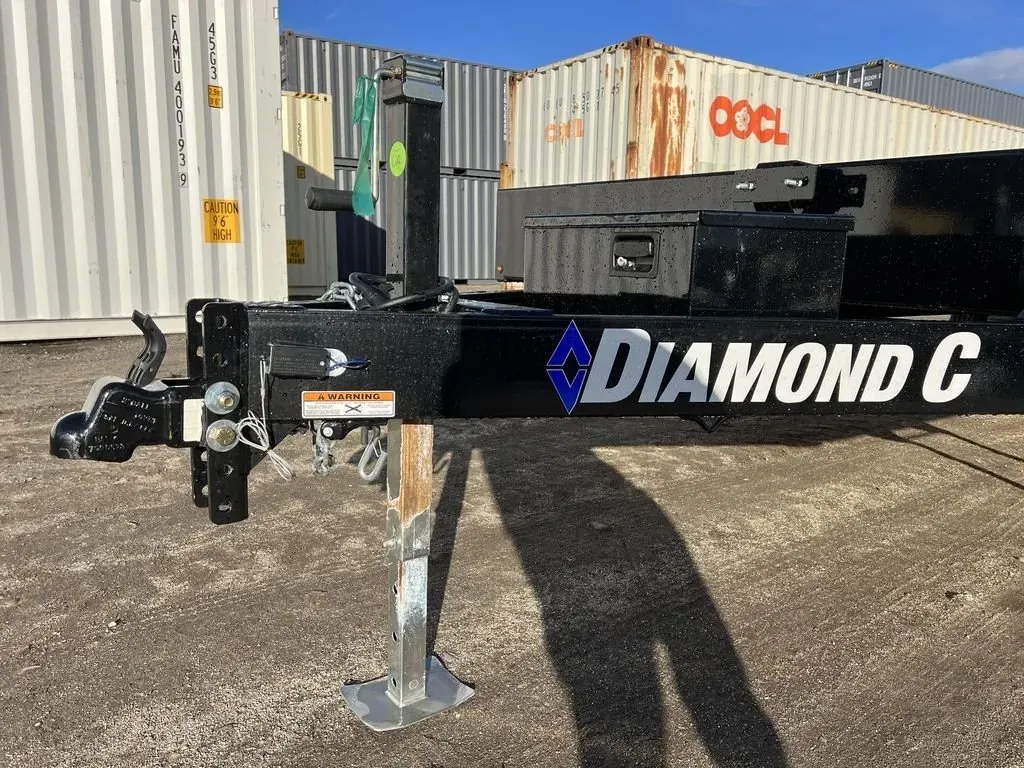

• 2″ – 10,000 lb Demco EZ-Latch adjustable channel coupler
• 6″ channel frame with 3″ I-beam crossmembers on 24″ centers

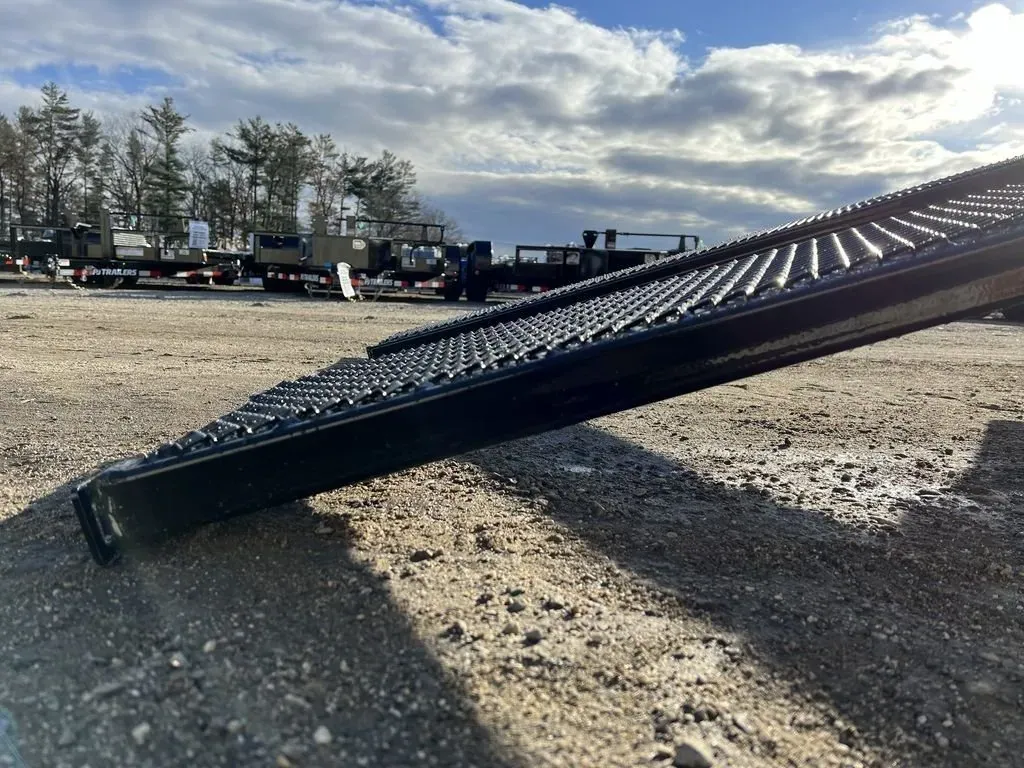

• 82″ slide-in ramps (2″ square tube) and channel tongue with integral frame
• 7,000 lb drop-leg jack, 2″ x 1/4″ rub rail with stake pockets and pipe spools
• 2″ treated decking, ST205/75R15 radial tires, all LED lights

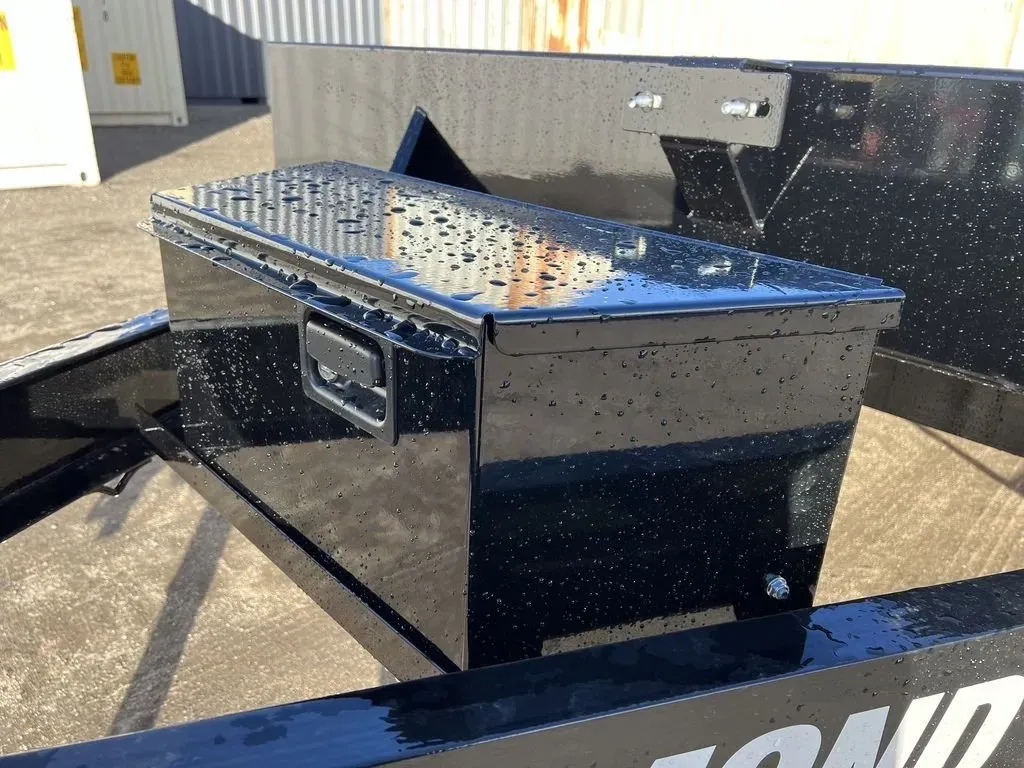

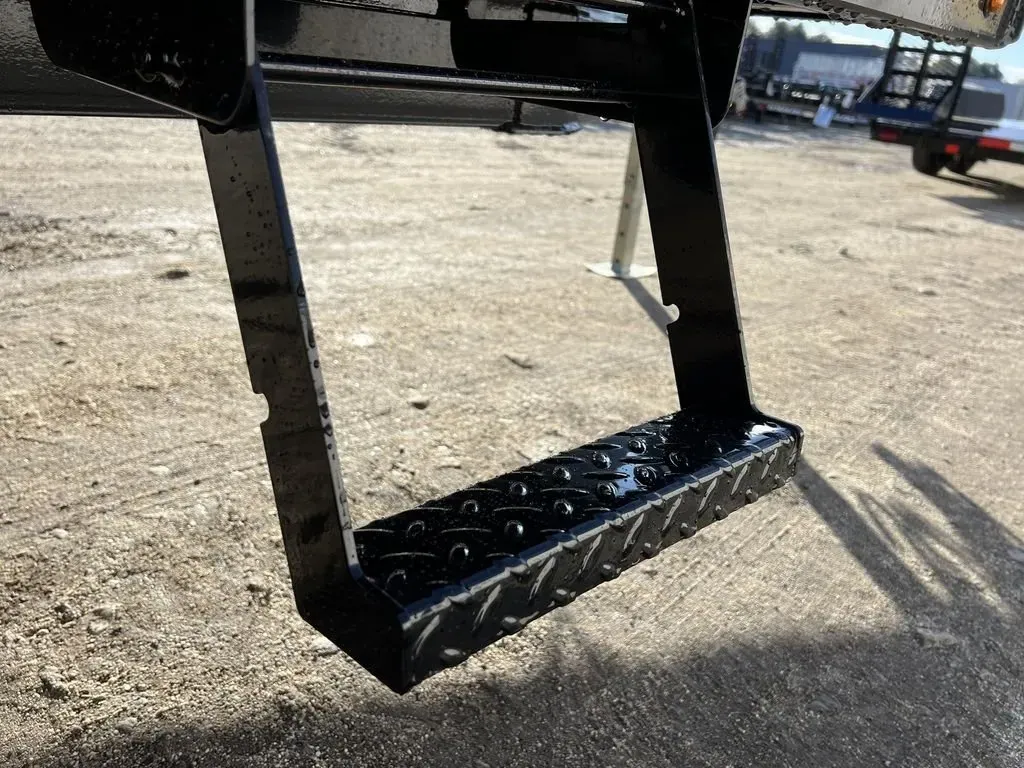

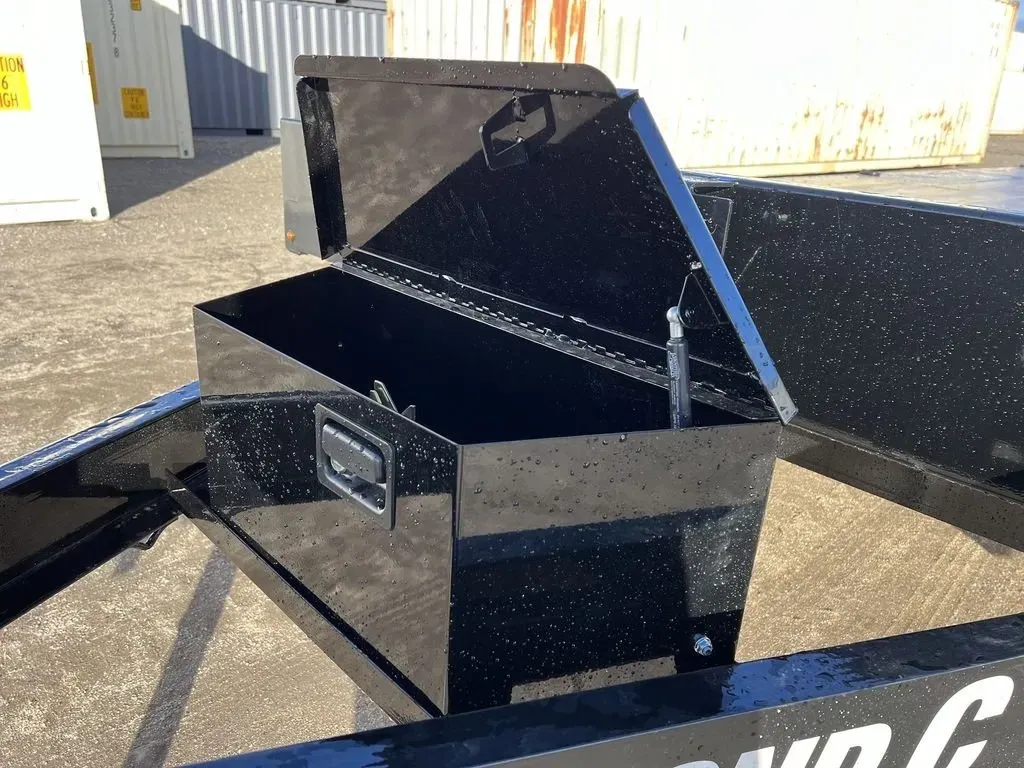

• Added options: lockable tongue storage box, spare mount, 1/2″ D-rings, retractable steps
• GVWR: 7,000 lbs — EVW: 3,120 lbs — Payload: 3,880 lbs

When sizing a trailer, match the payload rating to your heaviest expected load and leave headroom; here the roughly 3,880 lb payload comfortably covers most compact machines and material loads. The 1/2″ D-rings and stake pockets give you multiple tie-down points, and it’s worth confirming your tow vehicle’s rating and hitch match the 2″ coupler before pickup.
