10Ft X 8Ft Open Mesh Floor Bunded Store

The 10ft open mesh floor bunded storage container is engineered for the secure, compliant storage of chemicals, fuels, and hazardous materials where airflow and drainage matter. Converted new from a one-trip Cor-Ten steel container, it pairs a raised bund with a galvanised mesh floor, so any spilled liquid drops through the walkway and is safely captured in the bund below rather than pooling underfoot.

The Open Mesh Advantage

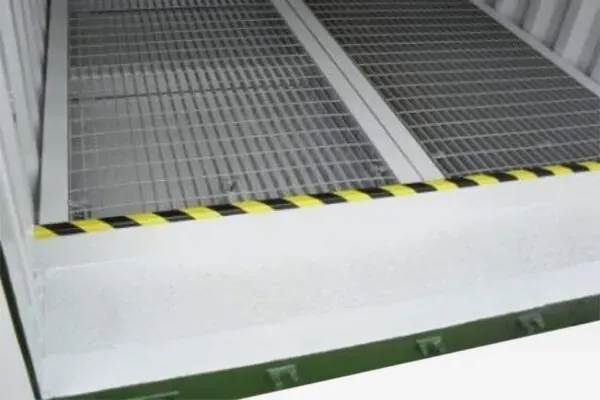

Unlike a flat floor bunded store, the open mesh design keeps stored drums and IBCs up off the containment tray. A galvanised mesh floor rated to 7.5kN/m2 sits above a 3mm Durbar base with a 300mm raised bund, giving you a strong walking and loading surface while allowing leaks and drips to fall clear of the goods. This is a preferred layout where you want to keep containers dry and inspect for leaks at a glance.

Secure, Ventilated, and Movable

Exterior hinged double doors at the end provide full-width access, secured by two locking bars and a factory-fitted lockbox. Twelve vents keep air moving to manage fumes and condensation, and forklift pockets let you relocate the unit around your site as needs change.

Specifications

• New, converted from a one-trip container
• All Cor-Ten steel construction with 300mm raised bund
• Galvanised open mesh floor, loading rated 7.5kN/m2
• 3mm Durbar floor welded into the container
• Exterior hinged double doors at the end with two locking bars
• Factory-fitted lockbox and forklift pockets
• 12 vents for airflow
• External: 2.99m L x 2.44m W x 2.59m H; Internal: 2.84m L x 2.35m W x 2.39m H
• Door opening: 2.34m W x 2.28m H; Weight approx. 1620kg

When selecting a bunded store, decide whether you need the raised, drained working surface of an open mesh floor or the solid deck of a flat floor version. The mesh floor suits drum and IBC storage where leak visibility and drainage are priorities. Always confirm the bund capacity meets your local secondary-containment requirements, and ensure your delivery site is firm, level, and accessible.
